davidpage · Post by **davidpage** » Sat Jan 16, 2010 12:10 pm

The problem:
The shadow generated using the beamer presentation class is weird... as follows:

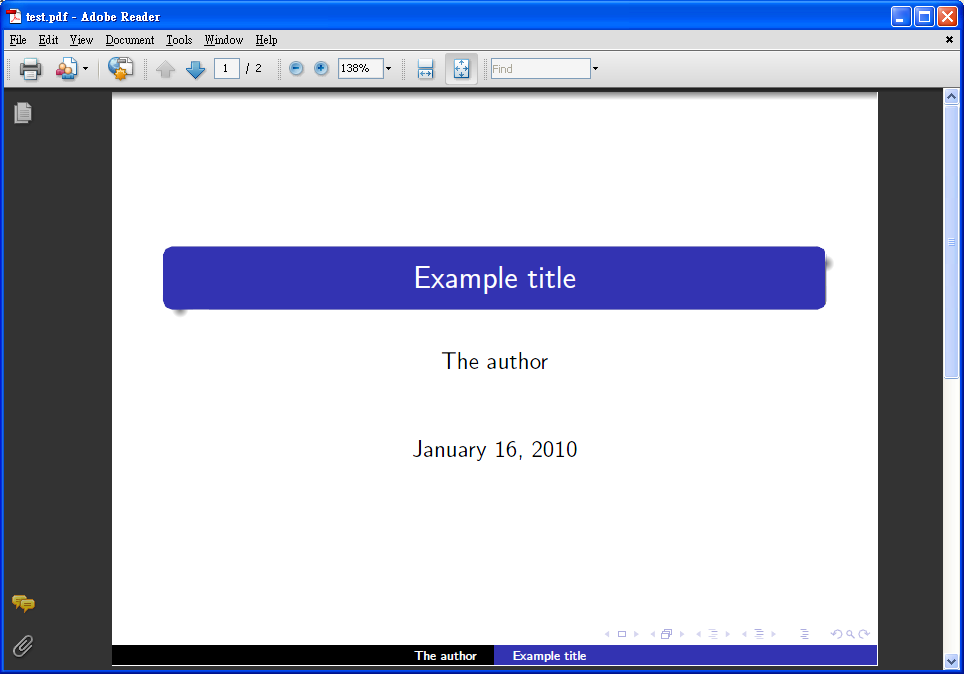

: shadow1.png (32.87 KiB) Viewed 10695 times

: shadow2.png (28.4 KiB) Viewed 10695 times

It is supposed to be a continuous grey shadow below the box, but instead only two dots appeared.

The code I used:

\documentclass{beamer}
\usetheme{Warsaw}

\title{Example title}
\author{The author}

\begin{document}

\begin{frame}
	\titlepage
\end{frame}

\begin{frame}
	\begin{theorem}
		2+2=4
	\end{theorem}
\end{frame}

\end{document}

Thanks in advance!
