Graphics, Figures & Tables ⇒ drawing arrows

[junextension]

I would like to draw arrows as in the image. The symbols are not important. I appreciate any of your advice. [img]file:///C:/Users/Jun/Desktop/870356985_75.jpg[img]

[Stefan Kottwitz]

Hi Jun,

welcome to the board!
We cannot see the image. Please post it as attachment here.

Stefan

[junextension]

Dear Stefan,

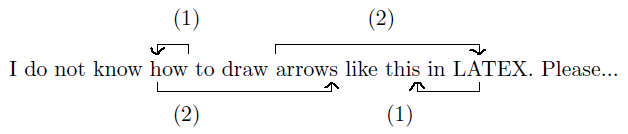

I am sorry that I did not post image right. Please understand that I am new for this community. I would like to draw arrows as in the image. I appreciate any of your advice.

[CrazyHorse]

I would like to draw arrows as in the image. I appreciate any of your advice.

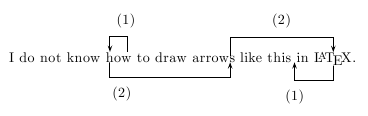

Code: Select all

\documentclass{article}
\usepackage{pst-node}

\begin{document}

 I do not know \rnode{A}{how} to draw \rnode{B}{arrows}
like \rnode{C}{this} in \rnode{D}{\LaTeX}.
\ncbar[angleA=90,offset=-0.6em]{->}{A}{A}\nbput[npos=1.1]{(1)}
\ncbar[angleA=-90,offsetA=-0.6em,offsetB=-1.1em]{->}{A}{B}\nbput[npos=1.1]{(2)}
\ncbar[angleA=90,offsetA=-1.1em]{->}{B}{D}\naput{(2)}
\ncbar[angleA=-90,offsetB=-1em]{->}{D}{C}\naput[npos=1.99]{(1)}

\end{document}

needs latex=>dvips=>ps2pdf (see also http://tug.org/PSTricks/main.cgi?file=pdf/pdfoutput)


Herbert

[junextension]

Dear Mr. GrazyHorse,

Thank you very much for your help.

I use winedit. I copied and pasted the above code. Somehow, it does not work. Compiler stopped in the middle. I believe that the package is installed correctly. Do you have any idea for what is happening?

[localghost]

[…] Somehow, it does not work. Compiler stopped in the middle. […]

Not very expressive. Check the log file for warnings and error messages. Pay special attention to Herbert's note regarding the compilation process.


Best regards and welcome to the board
Thorsten

[CrazyHorse]

I use winedit. I copied and pasted the above code. Somehow, it does not work. Compiler stopped in the middle. I believe that the package is installed correctly. Do you have any idea for what is happening?

use the sequence latex->dvips->ps2pdf. Don't know how
this can be done with one click in WinEdt.
However, I installed version 6 and tried successfully:

Shift-Ctrl-L (TeX->LaTeX)
Shift-Ctrl-D (TeX->dvips)
TeX->PDF->ps2pdf (no shortcut here)

or use the buttons from the menu bar

As an alternative you can run XeLaTeX, it needs no
additional steps

Herbert

[junextension]

Dear Herbert,

Thank you very much for your help. I installed Winedit Version 6, the problem was resolved with DVI file. I got used to Version 5 so I was using it.

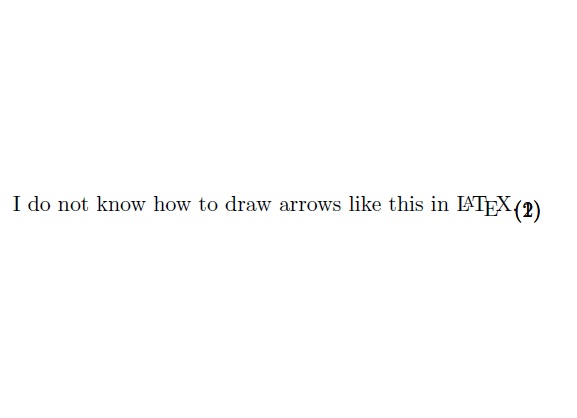

DVI file is good but PDF file is not good. I follow your instruction of textfying it into PDF but I got no arrows above and below the sentence and (2) sign showed up at the end.

Is this a problem with MITEX?

Thank you very much for your cooperation.

Jun Tanaka

[junextension]

Dear Herbert,

Thank you very much for your help. I installed Winedit Version 6, the problem was resolved with DVI file. I got used to Version 5 so I was using it.

DVI file is good but PDF file is not good. I follow your instruction of textfying it into PDF but I got no arrows above and below the sentence and (2) sign showed up at the end.

Is this a problem with MITEX?

Thank you very much for your cooperation.

Jun Tanaka

[CrazyHorse]

DVI file is good but PDF file is not good. I follow your instruction of textfying it into PDF but I got no arrows above and below the sentence and (2) sign showed up at the end.

Is this a problem with MITEX?

it has nothing to do with MikTeX.
try the following steps with viewing:

Shift-Ctrl-L view the dvi output, is it ok?

Shift-Ctrl-D (TeX->dvips) view the ps output, is it ok?

ps2pdf (a button) and the pdf, ist it ok?

Herbert
