Graphics, Figures & Tables ⇒ Missing vertical line in table

[mape2k]

Hello!

I have been working a while with LateX now and I love it! I came across one problem though.

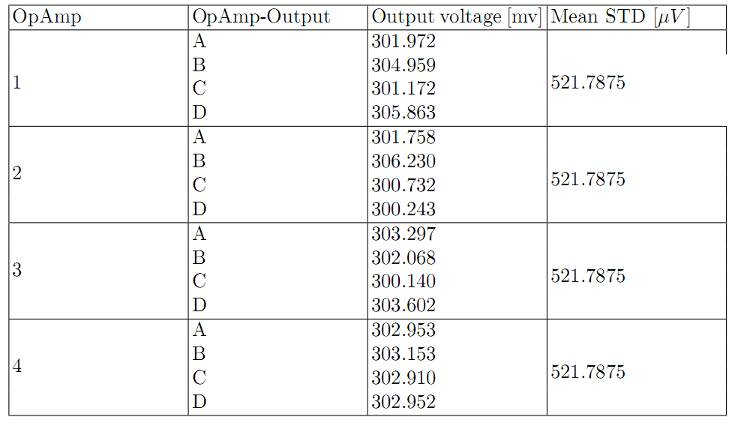

I want to create this table:


Everything works except that one missing vertical line in row 1! I already tried to search for the error and read multiple tutorials but none seem to help me

Here is the code for the table:

Code: Select all

\begin{table}[H]
\begin{center}
\begin{tabularx}{0.85\textwidth}{ |X|X|X|X| }
\hline
OpAmp & OpAmp-Output & Output voltage [mv] &Mean STD [$\mu V$]  \\
\hline
\multirow{4}[4]{*}{1} &A& 301.972  & \multirow{4}[4]{*}{521.7875} \\
	& 	B 	& 	304.959  \\
	&	C	&	301.172  \\
	&	D	&	305.863  \\
	\hline
\multirow{4}{*}{2} &A& 301.758 & \multirow{4}[4]{*}{521.7875} \\
	& 	B 	& 	306.230 &\\
	&	C	&	300.732 &\\
	&	D	&	300.243 &\\
	\hline
\multirow{4}{*}{3} &A& 303.297& \multirow{4}[4]{*}{521.7875} \\
	& 	B 	& 	302.068 &\\
	&	C	&	300.140 &\\
	&	D	&	303.602 &\\
	\hline
\multirow{4}{*}{4} &A& 302.953& \multirow{4}[4]{*}{521.7875} \\
	& 	B 	& 	303.153&\\
	&	C	&	302.910&\\
	&	D	&	302.952&\\
\hline
\end{tabularx}
\end{center}
\label{relchan}
\end{table}

Thanks in advance for your assistance!!


Edit by localghost: No external links! Attachments go onto the forum server.

[localghost]

Please always post a full minimal example to make the problem comprehensible for everyone.

You just forgot to specify the fourth column in the lines two to four of the table body.


Best regards and welcome to the board
Thorsten

[mape2k]

Problem solved! Thank you for the quick reply and sorry for not using a minimal example!

[yago]

I don't like the vertical lines in tables, and I think that in your table the data aspect is best centered, but below you have a code for this table.

Code: Select all

\documentclass{article}
\usepackage[T1]{fontenc}
\usepackage[latin9]{inputenc}

\makeatletter
\providecommand{\tabularnewline}{\\}
\usepackage{multirow}
\makeatother

\begin{document}
\renewcommand{\arraystretch}{1.2}
\begin{tabular}{|l|l|l|l|}
\hline
OpAmp & OpAmp-Output & Output voltage $\left[\mathrm{mV}\right]$ & Mean STD $\left[\mu V\right]$\tabularnewline
\hline
\multirow{4}{*}{1} & A & 301.972 & \multirow{4}{*}{521.7875}\tabularnewline
& B & 304.959 & \tabularnewline
& C & 301.172 & \tabularnewline
& D & 305.863 & \tabularnewline
\hline
\multirow{4}{*}{2} & A & 301.758 & \multirow{4}{*}{521.7875}\tabularnewline
& B & 306.230 & \tabularnewline
& C & 300.732 & \tabularnewline
& D & 300.243 & \tabularnewline
\hline
\multirow{4}{*}{3} & A & 303.297 & \multirow{4}{*}{521.7875}\tabularnewline
& B & 302.068 & \tabularnewline
& C & 300.140 & \tabularnewline
& D & 303.602 & \tabularnewline
\hline
\multirow{4}{*}{4} & A & 302.953 & \multirow{4}{*}{521.7875}\tabularnewline
& B & 303.153 & \tabularnewline
& C & 302.910 & \tabularnewline
& D & 302.952 & \tabularnewline
\hline
\end{tabular}
\end{document}
