Graphics, Figures & Tables ⇒ pst-node - labeling line problem

[bios]

Hello,
I got a crazy bug with labeling lines with pst node.
Even in the example of the offical pstricks site the error appear

Code: Select all

\documentclass{article}
\usepackage{pstricks}
\usepackage{pstricks-add}

\begin{document}

\begin{center}
\begin{tabular}{p{2cm} c}
   \begin{psmatrix}[rowsep=0.8,colsep=0.4]
     [name=X1] & \\[-25pt]
               & \dianode[fillstyle=solid,fillcolor=red!30]{S}{Condition1?}\\[0pt]
               & \rnode{SA}{\psframebox[fillstyle=solid,fillcolor=blue!30]{do something}}\\[-25pt]
     [name=X2] & \\[0pt]
               & \dianode[fillstyle=solid,fillcolor=red!30]{R}{Condition2?}\\[-10pt]
     [name=Y2] &
   \end{psmatrix}%
       \psset{arrows=->,nodesep=0pt}
       \ncline{S}{SA}\nbput{Yes}
       \ncline{SA}{R}
     \psbrace[ref=r,rot=180,nodesepA=-8pt](X1)(X2){Stage 1}
     \psbrace[ref=r,rot=180,nodesepA=-8pt](X2)(Y2){\parbox{2cm}{Stage 2 very
       looooooong text}}
\end{tabular}
\end{center}

\end{document}

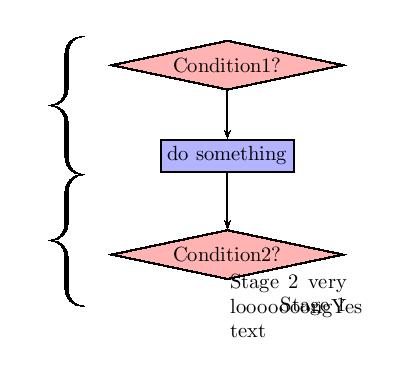

As you can see in the attachment the labels move the right at the bottom

[localghost]

Apart from some warnings your code works fine for me. Perhaps a matter of outdated packages. I obtained the file list below by adding the \listfiles command as very first line to your example.

Code: Select all

 *File List*
 article.cls    2007/10/19 v1.4h Standard LaTeX document class
  size10.clo    2007/10/19 v1.4h Standard LaTeX file (size option)
pstricks-add.sty    2009/03/17 v. 0.13 package wrapper for pstricks-add.tex (hv)
pstricks.sty    2008/11/26 v0.40 LaTeX wrapper for `PSTricks' (RN,HV)
pstricks.tex    2009/05/19 v1.29 `PSTricks' (tvz,hv)
  xcolor.sty    2007/01/21 v2.11 LaTeX color extensions (UK)
   color.cfg    2007/01/18 v1.5 color configuration of teTeX/TeXLive
   dvips.def    1999/02/16 v3.0i Driver-dependant file (DPC,SPQR)
pstricks-add.tex    2009/10/12 v3.35 `PSTricks-add' (hv)
pst-xkey.tex    2005/11/25 v1.6 PSTricks specialization of xkeyval (HA)
 xkeyval.sty    2008/08/13 v2.6a package option processing (HA)
 xkeyval.tex    2008/08/13 v2.6a key=value parser (HA)
 ***********

Best regards and welcome to the board
Thorsten

[bios]

I just updated the whole pstricks files my new filelist is

Code: Select all

 *File List*
 article.cls    2007/10/19 v1.4h Standard LaTeX document class
  size10.clo    2007/10/19 v1.4h Standard LaTeX file (size option)
pstricks.sty    2008/11/26 v0.40 LaTeX wrapper for `PSTricks' (RN,HV)
pstricks.tex    2010/06/06 v2.08 `PSTricks' (tvz,hv)
pst-xkey.tex    2005/11/25 v1.6 PSTricks specialization of xkeyval (HA)
 xkeyval.sty    2008/08/13 v2.6a package option processing (HA)
 xkeyval.tex    2008/08/13 v2.6a key=value parser (HA)
  pst-fp.tex    2010/06/06 v2.08 `PST-fp' (hv)
  xcolor.sty    2007/01/21 v2.11 LaTeX color extensions (UK)
   color.cfg    2007/01/18 v1.5 color configuration of teTeX/TeXLive
   dvips.def    1999/02/16 v3.0i Driver-dependant file (DPC,SPQR)
pstricks-add.sty    2010/02/11 v. 0.14 package wrapper for pstricks-add.tex (hv
)
pstricks-add.tex    2010/06/05 v3.40 `PSTricks-add' (hv)

This was not the problem.
The problem was that okular (ubuntu default viewer) couldnt read the ps file correctly

so the problem is fixed

thx anyway

[CrazyHorse]

This was not the problem.
The problem was that okular (ubuntu default viewer) couldnt read the ps file correctly

so the problem is fixed

you should view ps output only with ghostview or alternatively
the pdf output, when using okular

Herbert

[CrazyHorse]

Apart from some warnings your code works fine for me. Perhaps a matter of outdated packages. I obtained the file list below by adding the \listfiles command as very first line to your example.

Code: Select all

 *File List*
 article.cls    2007/10/19 v1.4h Standard LaTeX document class
  size10.clo    2007/10/19 v1.4h Standard LaTeX file (size option)
pstricks-add.sty    2009/03/17 v. 0.13 package wrapper for pstricks-add.tex (hv)
pstricks.sty    2008/11/26 v0.40 LaTeX wrapper for `PSTricks' (RN,HV)
pstricks.tex    2009/05/19 v1.29 `PSTricks' (tvz,hv)
  xcolor.sty    2007/01/21 v2.11 LaTeX color extensions (UK)
   color.cfg    2007/01/18 v1.5 color configuration of teTeX/TeXLive
   dvips.def    1999/02/16 v3.0i Driver-dependant file (DPC,SPQR)
pstricks-add.tex    2009/10/12 v3.35 `PSTricks-add' (hv)
pst-xkey.tex    2005/11/25 v1.6 PSTricks specialization of xkeyval (HA)
 xkeyval.sty    2008/08/13 v2.6a package option processing (HA)
 xkeyval.tex    2008/08/13 v2.6a key=value parser (HA)
 ***********

your packages are really out of date ...

Herbert

[localghost]

[...] your packages are really out of date [...]

TeX Live 2009 packages from my Linux distribution. Since there is no »tlmgr«, updating all »pst-xxx« packages would be too time-consuming.

[CrazyHorse]

[...] your packages are really out of date [...]

TeX Live 2009 packages from my Linux distribution. Since there is no »tlmgr«, updating all »pst-xxx« packages would be too time-consuming.

it is a "cp * .../texmf-dist/" when using
http://archiv.dante.de/~herbert/PSTricks-TDS.tgz

Herbert

[localghost]

it is a "cp * .../texmf-dist/" when using
http://archiv.dante.de/~herbert/PSTricks-TDS.tgz [...]

Perhaps I will do so with the TeX tree in my home directory. Many thanks for that.
