Text Formatting ⇒ Trees and tikZ

[revberaldo]

Hello,

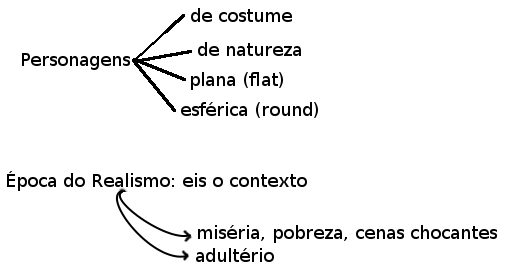

Is there a way to easily reproduce this?

Thank you in advance.


EDIT: I've found Tikz package and now I'm trying to use it. Take a loot at this message (in this very topic) to see my new doubts.

[CrazyHorse]

Is there a way to easyly reproduce this?

see http://tug.org/PSTricks/main.cgi?file=pst-tree/pst-tree
and http://mirror.ctan.org/graphics/pstrick ... /pst-tree/
for the package documentation

Herbert

[revberaldo]

I took a look at pst-tree but then I found Tikz. Anyway, the output isn't what I was expecting.

My code:

Code: Select all

\documentclass[11pt]{article}
\usepackage[utf8]{inputenc}
\usepackage[T1]{fontenc}
\usepackage[frenchb,brazilian]{babel}
\usepackage[osf]{libertine}
\usepackage{tikz}
\usetikzlibrary{trees,arrows,positioning}

\begin{document}

\begin{tikzpicture}[grow=right]
  \node {\textsc{Relações Sociais}}
    child {node {Pirâmide social}}
    child {node {Trapézio (hierarquia, cargos, patentes)}}
    child {node {Status como suprema missão}}
    child {node {Olhar moralista}
  };
\end{tikzpicture}

\end{document}

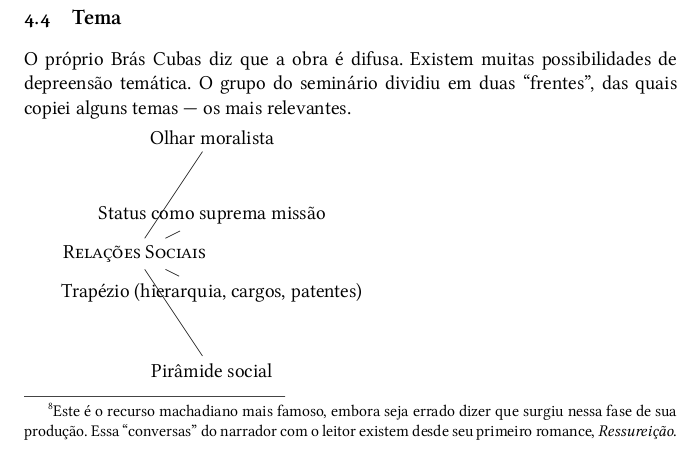

An image of the output is attached.

Also, is there a way to invert the nodes position, so that ``Pirâmide social'' would be the first one to appear and so on?

[torbjorn t.]

Also, is there a way to invert the nodes position, so that ``Pirâmide social'' would be the first one to appear and so on?

You can simply reverse the order of the nodes in the code.

Here I've also changed the distance between the nodes, to get a better result.

Code: Select all

\documentclass[11pt]{article}
\usepackage[utf8]{inputenc}
\usepackage[T1]{fontenc}
\usepackage[frenchb,brazilian]{babel}
\usepackage[osf]{libertine}
\usepackage{tikz}
\usetikzlibrary{trees,arrows,positioning}

\begin{document}

\begin{tikzpicture}[grow=right,level distance=8em,sibling distance=2em,every node/.style={right}]
  \node {\textsc{Relações Sociais}}
    child {node {Olhar moralista}}
    child {node {Status como suprema missão}}
    child {node {Trapézio (hierarquia, cargos, patentes)}}
    child {node {Pirâmide social}};
\end{tikzpicture}

\end{document}

Edit: Fixed a typo.

[revberaldo]

Hey!,

That works pretty well. I'm satisfied with the output.

Thank you!
