Hello, I want to add some images to a Latex document, the problem is that they use to resize and get pixeled.

This is the code:

Code: Select all

\begin{figure}[h]
\begin{center}
  \includegraphics{EJ1SIS}\\ %width=2.5583in
\end{center}
\caption{Esquema de transmisi\'on de datos con un cifrador-aleatorizador}
\end{figure}

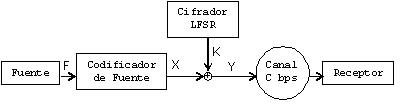

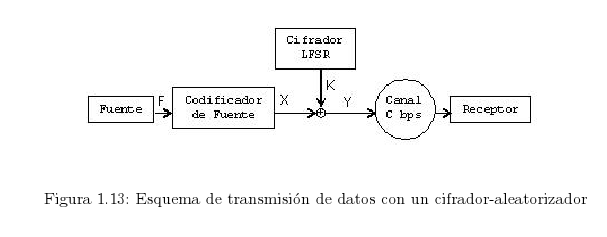

I attached the original image and the output.

Can you help with this? I don't understand way it resize automatically.

Thanks for all!

[localghost]

Scale the image to three quarters of its original size as shown below.

Code: Select all

\documentclass[11pt,a4paper,spanish]{article}
\usepackage[T1]{fontenc}
\usepackage[utf8]{inputenc}
\usepackage{babel}
\usepackage[font=small,labelfont=bf,tableposition=top]{caption}
\usepackage{graphicx}

\begin{document}
  \begin{figure}[!ht]
    \centering
    \includegraphics[scale=0.75]{EJ1SIS}
    \caption{Esquema de transmisión de datos con un cifrador-aleatorizador}
    \label{fig:ej1sis}
  \end{figure}
\end{document}

The reason for that is the relation between postscript point and pixel. See forum search for details.

As an alternative you can draw this picture with pgf/tikZ or PSTricks.

If this solves the issue, please mark the topic as solved by editing the initial post and choosing the green checkmark from the icon list.


Best regards
Thorsten
