Graphics, Figures & Tables ⇒ decimal numbers centering in cell

[casperyc]

Code: Select all

\documentclass[12pt]{article}

\usepackage{amsmath}
\usepackage{multicol,multirow}
\usepackage[left=1cm,right=1cm]{geometry}

\begin{document}

\begin{table}[h]
\centering
\begin{tabular}{*{5}{c} rr}
Year&Premium&Expenses&Acc.of $P_t-e_t$&Death Cost& \multicolumn{1}{c}{Survival Cost} & \multicolumn{1}{c}{In force expected net $CF$}\\[1.2ex]
$t$&$P_t$&$e_t$&$(P_t-e_t)(10.8)$&$10,000q_{62+t-1}$& \multicolumn{1}{c}{$p_{62+t-1}S_t$} & \multicolumn{1}{c}{$(CF)_t$}\\[1.2ex]
1&3,091,79&92.75&3238.96&101.12&0.00&3137.84\\
2&3,091,79&92.75&3238.96&113.44&0.00&3125.52\\
3&3,091,79&92.75&3238.96&127.16&9872.84&-6761.04
\end{tabular}
\end{table}

\end{document}
==========================================================

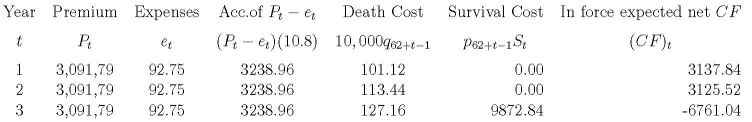

how do i make the "numbers" centered as well in the table?
keeping the decimals aligned


Thanks!

casper

[freethebee]

Hi,
Have a look at the siunitx package, section 5.1 of the manual.

[php1ic]

Use @{} to specify what is between the columns and split the decimals over 2 columns separated by the decimal point.

Code: Select all

\begin{table}[h]
\centering
\begin{tabular}{r@{.}lr@{.}l}
\multicolumn{2}{c}{Centered} & \multicolumn{2}{c}{Stuff}\\
1234&56&0&005\\
0&12&234&67
\end{tabular}
\end{table}

[josephwright]

Using the siunitx approach, I'd do something like:

Code: Select all

\documentclass{article}

\usepackage{siunitx,booktabs}
\usepackage[left=1cm,right=1cm]{geometry}

\begin{document}

\begin{table}[h]
\centering
\begin{tabular}{
  S[tabformat=1]
  S[tabformat=6]
  S[tabformat=4.2]
  S[tabformat=3.2]
  S[tabformat=4.2]
  S[tabformat=+4.2]
  }
  \toprule
  {Year} & {Premium} & {Acc.~of $P_t-e_t$} & {Death Cost}        & {Survival Cost}   & {In force expected net $CF$} \\
  {$t$}  & {$P_t$}   & {$(P_t-e_t)(10.8)$} & {$10000q_{62+t-1}$} & {$p_{62+t-1}S_t$} & {$(CF)_t$}                   \\
  \midrule
  1      & 309179    & 3238.96             & 101.12              & 0.00              &  3137.84 \\
  2      & 309179    & 3238.96             & 113.44              & 0.00              &  3125.52 \\
  3      & 309179    & 3238.96             & 127.16              & 9872.84           & -6761.04 \\
  \bottomrule
\end{tabular}
\end{table}

\end{document}

[casperyc]

Using the siunitx approach, I'd do something like:

Code: Select all

\documentclass{article}

\usepackage{siunitx,booktabs}
\usepackage[left=1cm,right=1cm]{geometry}

\begin{document}

\begin{table}[h]
\centering
\begin{tabular}{
  S[tabformat=1]
  S[tabformat=6]
  S[tabformat=4.2]
  S[tabformat=3.2]
  S[tabformat=4.2]
  S[tabformat=+4.2]
  }
  \toprule
  {Year} & {Premium} & {Acc.~of $P_t-e_t$} & {Death Cost}        & {Survival Cost}   & {In force expected net $CF$} \\
  {$t$}  & {$P_t$}   & {$(P_t-e_t)(10.8)$} & {$10000q_{62+t-1}$} & {$p_{62+t-1}S_t$} & {$(CF)_t$}                   \\
  \midrule
  1      & 309179    & 3238.96             & 101.12              & 0.00              &  3137.84 \\
  2      & 309179    & 3238.96             & 113.44              & 0.00              &  3125.52 \\
  3      & 309179    & 3238.96             & 127.16              & 9872.84           & -6761.04 \\
  \bottomrule
\end{tabular}
\end{table}

\end{document}

Thanks, I believe this is something I was looking for, much easier than using @{}

How can I apply
\num[digitsep=comma]{12345}
this, the comma seperator to a speacific column? e.g. the first column in the table above?

Thanks.

[josephwright]

How can I apply
\num[digitsep=comma]{12345}
this, the comma seperator to a speacific column? e.g. the first column in the table above?

Code: Select all

\begin{tabular}{
  S[tabformat=1]
  S[tabformat=6,digitsep=comma]
  S[tabformat=4.2]
  S[tabformat=3.2]
  S[tabformat=4.2]
  S[tabformat=+4.2]
  }

(I guess you mean column 2, not column 1!)

[casperyc]

How can I apply
\num[digitsep=comma]{12345}
this, the comma seperator to a speacific column? e.g. the first column in the table above?

Code: Select all

\begin{tabular}{
  S[tabformat=1]
  S[tabformat=6,digitsep=comma]
  S[tabformat=4.2]
  S[tabformat=3.2]
  S[tabformat=4.2]
  S[tabformat=+4.2]
  }

(I guess you mean column 2, not column 1!)

yes, you are absolutely right!
that's why i couldnt get it even though i tried
S[tabformat=1,digitsep=comma]
which was a bit tooo careless

I am reading your siunitx package at the moment.

Thanks!

[casperyc]

Code: Select all

\begin{table}[H]
\centering
\begin{tabular}{
	S[tabformat=1]
	S[tabformat=4.2,digitsep=comma]
	S[tabformat=4.2,digitsep=comma]
	S[tabformat=4.2,digitsep=comma]
	S[tabformat=1.5]
	S[tabformat=4.2]
	S[tabformat=+3.2]
	}
	{Year} &
	{In force expected} &
	{Reserve at}  &
	{Acc.~of reserve}  &
	{Survival} &
	{In force expected reserve} &
	{Profit} \\[1.2ex]
	%
		&
	{net $CF$}    &
	{start of year} &
	{at start of year} &
	{Prob.} &
	{at end of year} &
	{vector}  \\[1.2ex]
	%
	{ $t$ }  &
	{ $(CF)_t$ }  &
	{ ${}_{t-1}V$  }  &
	{ $_{t-1}V(1.08)$  }  &
	{ $p_{62+t-1}$ }  &
	{ $p_{62+t-1}{}_tV$ } &
	{ $(PRO)_t$ } \\[1.2ex]
	%
1&3137.84&0.00&0.00&0.98989&3139.10&-1.26\\
2&3125.52&3171.16&3424.85&0.98866&6426.11&124.26\\
3&-6761.04&6499.82&7019.81&0.98728&0.00&258.77
\end{tabular}
\end{table}

numbers such as 3171.16

how do i get it to 3,171.16

i have tried apply S[tabformat=4.2,digitsep=comma] to its column
does not work

Thanks.

[josephwright]

You need to turn on the "sepfour" option. As you applying the same settings globally to the table, it will be faster to put them in only once:

Code: Select all

\begin{table}
  \sisetup{digitsep=comma,sepfour}
  \begin{tabular} ...

[casperyc]

You need to turn on the "sepfour" option. As you applying the same settings globally to the table, it will be faster to put them in only once:

applying

Code: Select all

\sisetup{digitsep=comma,sepfour}

globally,
the deciamls got the comma as well.
e.g.
0.989,89
0.987,28

is there another command that can keep the decimals as
0.989 89
0.987 28

space seperated?

Thanks.
