Page Layout ⇒ Modify header rule length and maintain consistency

[jordi]

Hello,

I'm typesetting a book and there's a page layout question that I'm unable to find out how to implement. I've been modifying certain commands and environments of the book class in order to set a header rule length different from the default size (which is a length equal to \textwidth and a thickness (actually named by LaTeX as "width")). I have tried almost every aspect of fancyhdr.sty (headoffset, headrule, etc.) but I cannot get what this fake images illustrate

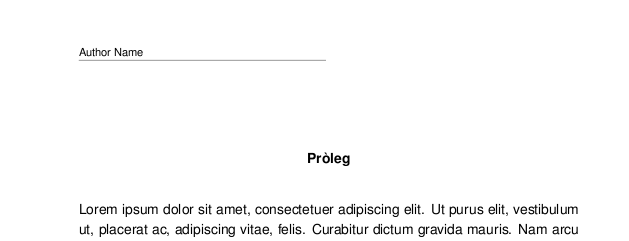

Left-odd page:

Left-odd page.

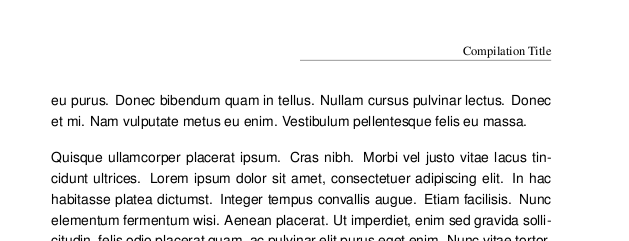

Right-even page:

Right-even page.


Note that I use a symmetrical (sidemargin from odd to even differs) twoside layout.

I'd appreciate some help.
Thanks ppl.

[localghost]

Actually the fancyhdr package offers all the resources to get this work. The inner offset of the head rule has to be shortened by half of the text width. A possible solution is shown below.

Code: Select all

Code, edit and compile here:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
\documentclass[11pt,a4paper,english]{book}
\usepackage[T1]{fontenc}
\usepackage[utf8]{inputenc}
\usepackage{babel}
\usepackage{fancyhdr}
\usepackage{blindtext}
\usepackage{arev}
\usepackage{microtype}
\fancyhf{}
\fancyhead[LE,RO]{\bfseries\thepage}
\fancyhead[LE]{\small Author Name}
\fancyhead[RO]{\small Compilation Title}
\fancyfoot[LE,RO]{\thepage}
\renewcommand{\headrulewidth}{0.5pt}
\renewcommand{\footrulewidth}{0pt}
\fancyheadoffset[RE,LO]{-0.5\textwidth}
\pagestyle{fancy}
\begin{document}
  \Blinddocument
\end{document}


הההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההה
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Run LaTeX here

Note that the reduction of the head width lets you no more place any contents in the inner header of the pages.


Best regards and welcome to the board
Thorsten

[jordi]

I tried different ways to use the \textwidth parameter, but not this... (imho, it is sometimes confusing to use certain parameters inside commands correctly).

Thanks localghost.
