Page Layout ⇒ TOC

[omkardpd]

Hello,

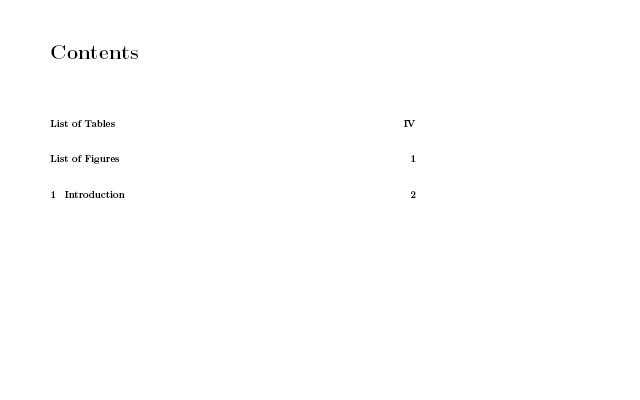

I am having some issues with TOC, especially with "\listoffigures". A snapshot is also attached here. I am using the following code:

Code: Select all

\documentclass [oneside, 12pt, a4paper, onecolumn, fleqn]{book}
\pagestyle{plain}
\pagenumbering{arabic}
\usepackage[nottoc]{tocbibind}
\raggedbottom
\begin{document}
\include{ch1_abstract}

\pagenumbering{Roman}
\tableofcontents
\cleardoublepage
\addtocontents{toc}{\protect\setcounter{tocdepth}{2}}
\newpage
\listoftables
\listoffigures
\pagenumbering{arabic}

\input{ch2-introduction}
\include{ch3_Theory}

\end{document}

Why does List of Figures start with page number "1" (in Arabic style)? I want the entire TOC, list of tables and list of figures with page numbers in Roman, and the chapters of the book with Arabic page numbers. Tried many ways, but could figure out. Can I get some help?

Thank you in advance.

Regards,

Omkar

[localghost]

Insert a \clearpage or \newpage command right after the LoF for page breaking. You may use \frontmatter, \mainmatter and \backmatter for dividing your document. In the book class these commands set the right page numbering for the three parts.


Best regards
Thorsten

[omkardpd]

Thank you, the problem has been solved by your suggestion.

Regards,

Omkar
