Graphics, Figures & Tables ⇒ insert png picture in beamer

[ahmed]

Hi everybody

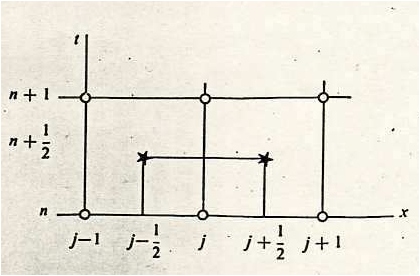

I cannot insert png picture in beamer (power point presentation)
it always give me error ,i am building latex in kile with latexpdf .the tex file and log file are attached

I am using kile 2.0.2(using KDE 3.5.10 release 21.11 opensuse)
thank in advance

[localghost]

You don't need any package like (x)color because it is loaded by the beamer class. Trying to compile your example on my system it caused an option clash. Use only the graphicx package for graphics inclusion. Avoid any driver option like pdftex or similar. The packages will detect on their own which compiler engine is running. Modify your code as shown below.

Code: Select all

\documentclass[compress,slidestop,smaller]{beamer}
\usepackage{graphicx}
\usetheme{Antibes}   % Beamer theme v 3.0
\usecolortheme{lily} % Beamer color theme

\title{Chapter 3}
\subtitle{yyy}
\author{yyyyyyyy}
\institute{yyyyyyyyy} % Optional, I think

\begin{document}
  \begin{frame}
    \includegraphics{lax}
  \end{frame}
\end{document}

Such simple graphics can be drawn very easy by hand. See the example below.

Code: Select all

\documentclass[english,smaller]{beamer}
\usepackage[T1]{fontenc}
\usepackage[utf8]{inputenc}
\usepackage{babel}
\usepackage{tikz}

\begin{document}
  \begin{frame}
    \begin{tikzpicture}[scale=3,font=\small,thick]
      \draw[help lines](-0.25,0) grid (2.25,1.25);
      \draw(0,1.5) node[left] {$t$} -- (0,0) -- (2.5,0) node[right] {$x$};
      \foreach \y in {0,1}
        \foreach \x in {0,1,2}
          \filldraw[fill=white,very thin](\x,\y) circle (1pt);
      \foreach \x in {0.5,1.5}
        \fill(\x,0.5) circle (1pt);
      \draw (0.5,0) -- (0.5,0.5) -- (1.5,0.5) -- (1.5,0);
      \draw (-0.25,0) node[left] {$n$};
      \draw (-0.25,0.5) node[left] {$n+\frac{1}{2}$};
      \draw (-0.25,1) node[left] {$n+1$};
      \draw (0,0) node[below=2pt] {$j-1$};
      \draw (0.5,0) node[below] {$j-\frac{1}{2}$};
      \draw (1,0) node[below=2pt] {$j$};
      \draw (1.5,0) node[below] {$j+\frac{1}{2}$};
      \draw (2,0) node[below=2pt] {$j+1$};
    \end{tikzpicture}
  \end{frame}
\end{document}

For more information see the pgf/tikZ manual.


Best regards
Thorsten¹

[ahmed]

great thanks for you Thorsten.the latex code for inserting picture is working perfectly.And your code for drawing it is fantastic.
Thanks
