Drawing Venn Diagrams

Post by Jonny Boy »

What is the easiest way of drawing Venn Diagrams in LaTeX?
Top

Recommended reading 2024:

LaTeXguide.org • LaTeX-Cookbook.net • TikZ.org

NEW: TikZ book now 40% off at Amazon.com for a short time.

User avatar
Kris
Posts: 56
Joined: Sun Jan 14, 2007 4:04 pm

Drawing Venn Diagrams

Post by Kris »

Hi Jonny,

Google found this one (asymptote-package):

http://asymptote.sourceforge.net/doc/LaTeX-usage.html

Regards
Kris
Last edited by Kris on Mon Feb 05, 2007 7:26 pm, edited 1 time in total.
Top
User avatar
localghost
Site Moderator
Posts: 9202
Joined: Fri Feb 02, 2007 12:06 pm

Drawing Venn Diagrams

Post by localghost »

Looking at Wikipedia and the link given by Kris, i would suggest PSTricks. In its documentation the command \pscustom is described (Chapter IV - Custom Graphics, Page 32ff).
Last edited by localghost on Sat Feb 17, 2007 2:23 pm, edited 1 time in total.
Top
shalin
Posts: 1
Joined: Sun Mar 18, 2018 3:55 pm

Drawing Venn Diagrams

Post by shalin »

localghost wrote:Looking at Wikipedia and the link given by Kris, i would suggest PSTricks. In its documentation the command \pscustom is described (Chapter IV - Custom Graphics, Page 32ff).
How about importing from a pre-drawn venn diagram template as a image format (jpeg/png/svg). You can even embed as a iframe to a website regardless of the CMS.
Last edited by shalin on Sun Mar 18, 2018 3:58 pm, edited 1 time in total.
Top
User avatar
Stefan Kottwitz
Site Admin
Posts: 10345
Joined: Mon Mar 10, 2008 9:44 pm

Drawing Venn Diagrams

Post by Stefan Kottwitz »

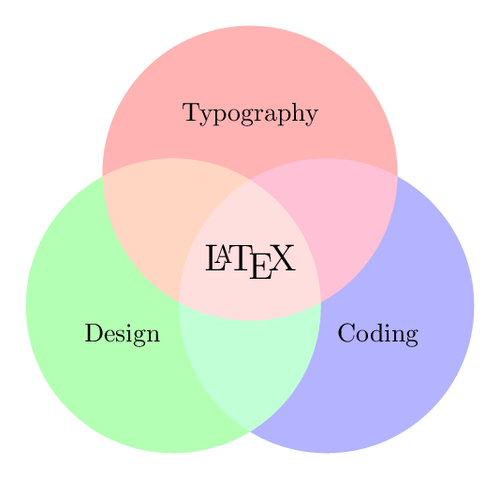

TikZ is a good option. Examples:
Stefan
