Page Layout ⇒ Changing vertical gaps in header

[Silvo]

G'day,

Sorry if this has been asked before, but I couldn't find it. I have a header with a horizontal rule in my document. This works fine, except where there are section titles immediatly after the header on the page. There simply is not enough space after the decorative line for the title to go -- it collides and looks awful.

Here is what I mean:



See how the title collides with the line?

My first question is: how do I make the gap underneath the line bigger? I know I can make the header area bigger with \renewcommand{\headheight}{XXpt}, but this just moves the line further down on the page.

Currently, I have removed the line, but this doesnt leave enough space between my header and the text, so I wanted to move the header text further up the page. I thought I could make the header size bigger, but this moves the header text DOWN the page, which seems stupid. How can I make the text appear at the TOP of the header, rather than the bottom? At the moment, I have put in blank lines after my text, so that it goes further up the header, leaving a bigger gap.

It works:



But it is obviously not ideal. I have to do it for each column in the header.

So my questions are:
1. How do I leave a bigger gap under the decorative line in the header?
2. How do I make the text appear at the top of the header rather than at the bottom?

Thank you in advance, and my apologies for the length of this post. I would like it if both questions could be answered, as although either would work for what I need, I would rather learn it properly.

Thanks again!

[localghost]

Build a minimal working example (MWE) that causes the misbehaviour shown in the first picture.

Please upload attachments to the forum server. External links can get lost with the time.


Best regards and welcome to the board
Thorsten

[Silvo]

I suppose an example would be helpful. I didn't think to, because I just assumed that there was a command I could use to do this that I didn't know.

It turns out that this issue only occurs when using the package "fullpage", which I used to give me smaller margins. Does that help any? I'm guessing your advice will be to just not use that package, wouldn't it?

Code: Select all

\documentclass[a4paper,10pt]{article}
\usepackage{fancyhdr}
\usepackage{fullpage}
\begin{document}
\pagestyle{fancy}
\fancyhf{}
\fancyhead[L]{Header text here}
First page
\pagebreak
\section*{Section title goes here}
\end{document}

Look at the second page for the collision issue. It appears that there is an ever bigger issue with the first page, where the text overlaps entirely, but I have a cover-page in my real document, so I don't really mind too much about that (although knowing a fix would be handy).

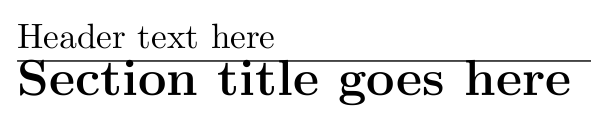

Second page collision issue:


First page overlap issue:


Sorry about the external images. I didn't know that would be a problem.

Thank you!

[localghost]

Compiling your MWE, I get a notable warning from the fancyhdr package which you should also find in your log file.

Code: Select all

Package Fancyhdr Warning: \headheight is too small (0.0pt):
  Make it at least 12.0pt.
  We now make it that large for the rest of the document.
  This may cause the page layout to be inconsistent, however.

And the cause is the fullpage package with does the wrong settings for the type area. Page dimensions for the standard classes should be set with the geometry package. Do the according modification to get a proper page layout.

Code: Select all

\documentclass[10pt,a4paper]{article}
\usepackage[includeheadfoot,margin=2cm]{geometry}
\usepackage{fancyhdr}

\fancyhf{}
\fancyhead[L]{Header text here}
\pagestyle{fancy}

\begin{document}
  First page
  \pagebreak
  \section*{Section title goes here}
\end{document}

For more information about the capabilities of the package take a look at its manual.

[Silvo]

Thank you very much for that! All fixed now!
