Aligment of double column text at last page (balance column)

Post by afinko »

Hi,

I am writing a paper in IEEE double column format.
Is there a way how to align the both column in last page?
It means that references will be divided in both columns uniformly, so the both column will end at the same high from bottom of the page.

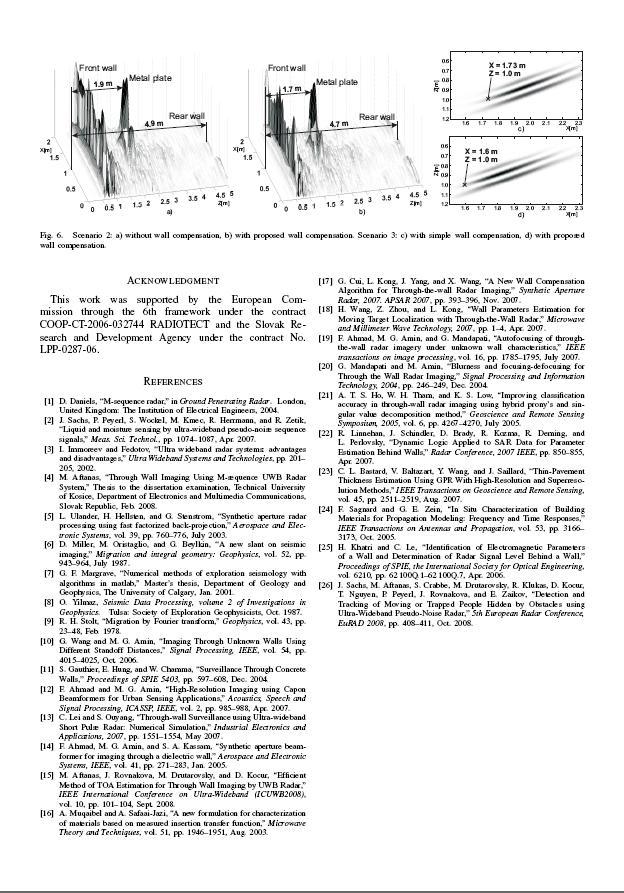

example1.JPG is as it is in default in IEEE template.
example2.JPG is how I found it in lot of IEEE papers.

Thank you.
Attachments
As I want to have it.
As I want to have it.
As it is in default.
As it is in default.
Last edited by afinko on Tue Mar 17, 2009 12:32 am, edited 2 times in total.

Recommended reading 2024:

LaTeXguide.org • LaTeX-Cookbook.net • TikZ.org

NEW: TikZ book now 40% off at Amazon.com for a short time.

kaiserkarl13
Posts: 707
Joined: Tue Mar 25, 2008 5:02 pm

Aligment of double column text at last page (balance column)

Post by kaiserkarl13 »

The following works, but may not be compatible with all packages (especially ones that modify how TeX produces output):

Code: Select all

\documentclass{article}
\usepackage{balance}

\begin{document}
blah blah

\bibliographystyle{mystyle}
\balance
\bibliography{references}
\end{document}
afinko
Posts: 7
Joined: Sun Jun 29, 2008 11:46 pm

Aligment of double column text at last page (balance column)

Post by afinko »

kaiserkarl13:

Thank you very much, it works great :D
Exactly what I was looking for.
Thumbs Up :P
Attachments

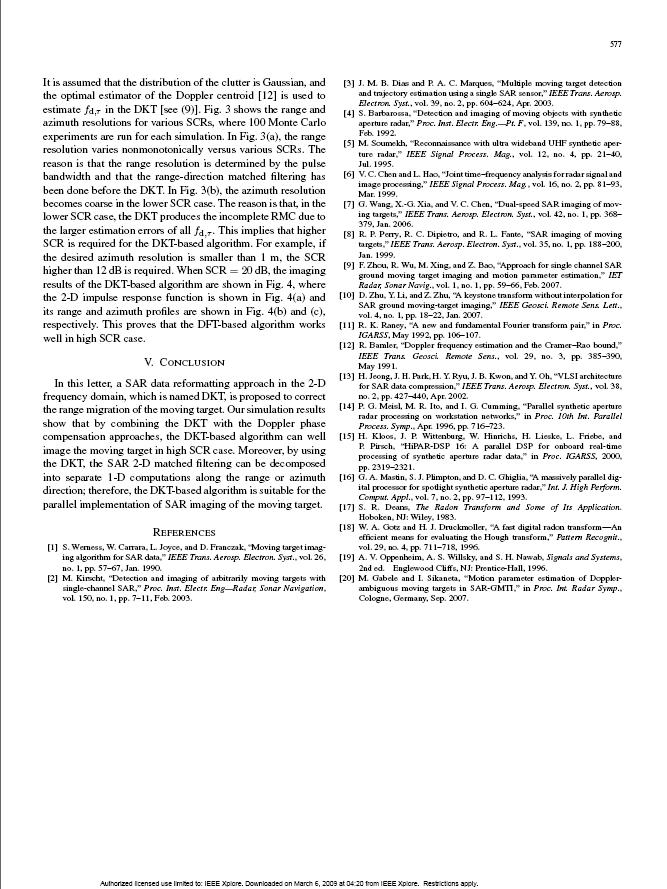

Final balanced paper.jpg
Final balanced paper.jpg (150.45 KiB) Viewed 34100 times
