Hi all,

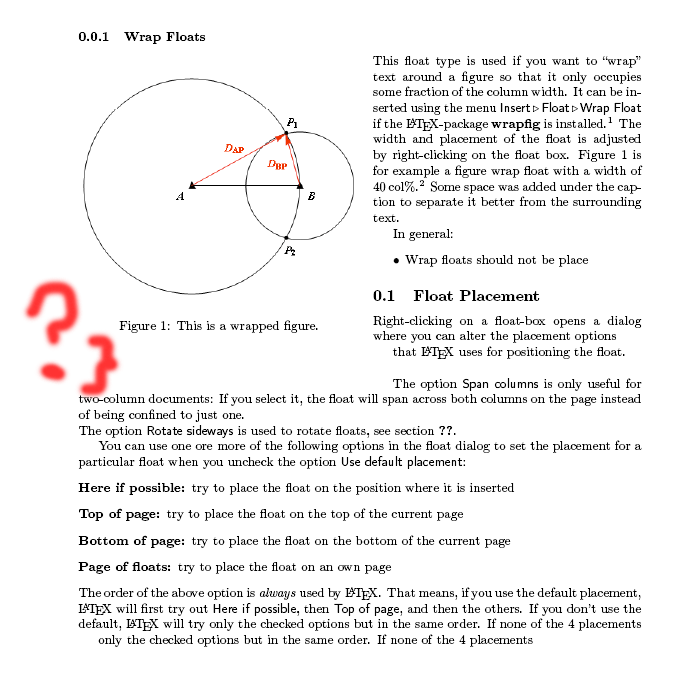

I'm using LyX as a Latex editor and I'm trying to put a wrapped figure in my document. I noticed that the very same thing I'm trying to accomplish is already included in the LyX user's guide. There however with the default picture it looks nice, but when I try to replace it with mine the pdf version has plenty of white space under the picture title and I don't seem to have any control over it.
So the question is - how do I get rid of the white space under the picture title
I'm using
LyX v1.6.1
MiKTeX v2.7 on WinXP32
see attached sample files
LyX ⇒ How to control the blank space under a wrapped figure
How to control the blank space under a wrapped figure
- Attachments
-
- Dist-Dist-Resection-Fig1.eps.txt
- eps figure - rename to eps
- (26.82 KiB) Downloaded 526 times
-
- wrap.lyx.txt
- Document source - rename to .lyx
- (6.14 KiB) Downloaded 546 times
-
- wrap.gif (42.74 KiB) Viewed 19662 times
Learn LaTeX easily with newest books:
The LaTeX Beginner's Guide: 2nd edition and perfect for students writing a thesis
The LaTeX Cookbook: 2nd edition full of practical examples for mathematics, physics, chemistry, and more
LaTeX Graphics with TikZ: the first book about TikZ for perfect drawings in your LaTeX thesis
How to control the blank space under a wrapped figure
The latex wikibook http://en.wikibooks.org/wiki/LaTeX/Floa ... d_Captions acutally has a section that talks about this. Basically, you just use \vspace{-xx}, where xx is some positive value for the amount of space you want to remove, after the caption. I wasn't able to read the materials that you posted, so if you have already tried this, nevermind. I have used this method to remove white space from under some of my figures and it works pretty good.
