General ⇒ Drawing an specific feynman diagram with TikZ (LaTeX)

[gtg2000]

Hi,

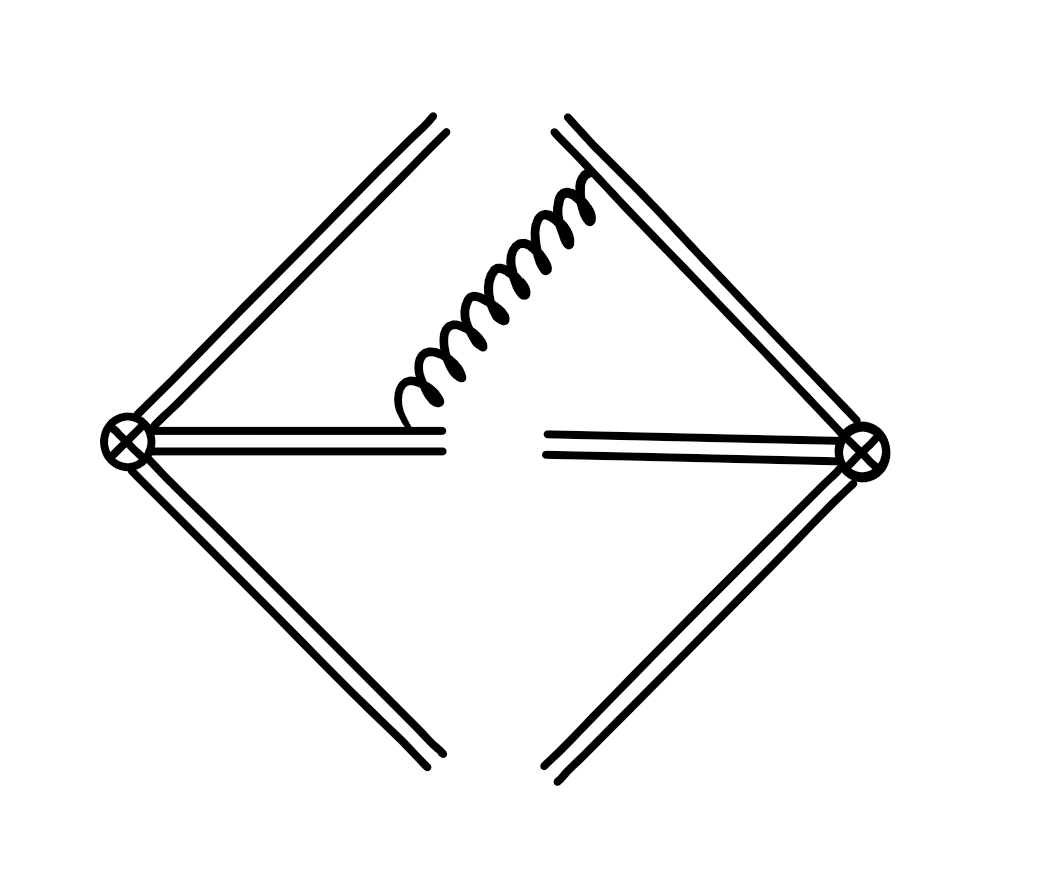

I was looking for a diagram such as shown in the first picture, but I just get the one that is in the second picture with this code:

Code: Select all

\begin{tikzpicture}
\begin{feynman}[large]
\vertex (b);
\vertex [left=of b] (a);
\vertex [above right=of a] (i1);
\vertex [below right=of a] (i2);
\vertex (d);
\vertex [right=of d] (c);
\vertex [above left=of c] (j1);
\vertex [below left=of c] (j2);
\diagram* {
(a) [crossed dot] -- [double] (b)  -- [gluon] (j1),
(a) [crossed dot] -- [double] {(i1),(i2)},

(d) -- [double] (c) [crossed dot],
(j1) -- [double] (c) [crossed dot] -- [double] (j2),
};
\end{feynman}
\end{tikzpicture}

How can I separate the central lines and draw the correct vertex?

Thank you in advance!!

Image 1


Image 2

feynman tikz.png (4.11 KiB) Viewed 3608 times

[gtg2000]

Finally, I solved it by:

Code: Select all

\begin{tikzpicture}
\begin{feynman}[large]
\vertex (b);
\vertex [left=of b, crossed dot,draw=black,fill=white] (a) {};
\vertex [above right=of a] (i1);
\vertex [below right=of a] (i2);
\vertex [right=3 cm of a](d);
\vertex [right=of d, crossed dot,draw=black,fill=white] (c) {};
\vertex [above left=of c] (j1);
\vertex [below left=of c] (j2);
\diagram* {
(a) -- [double] (b) -- [gluon] (j1),
(a) -- [double] {(i1),(i2)},

(d) -- [double] (c),
(j1) -- [double] (c) -- [double] (j2),
};
\end{feynman}
\end{tikzpicture}

[Stefan Kottwitz]

Hi,

welcome to the forum!

Thanks for showing us the solution you found. Btw. the feynman diagram category on TikZ.net may be interesting to you.

Stefan
