Graphics, Figures & Tables ⇒ drawing with tikz

[Ijuptilk]

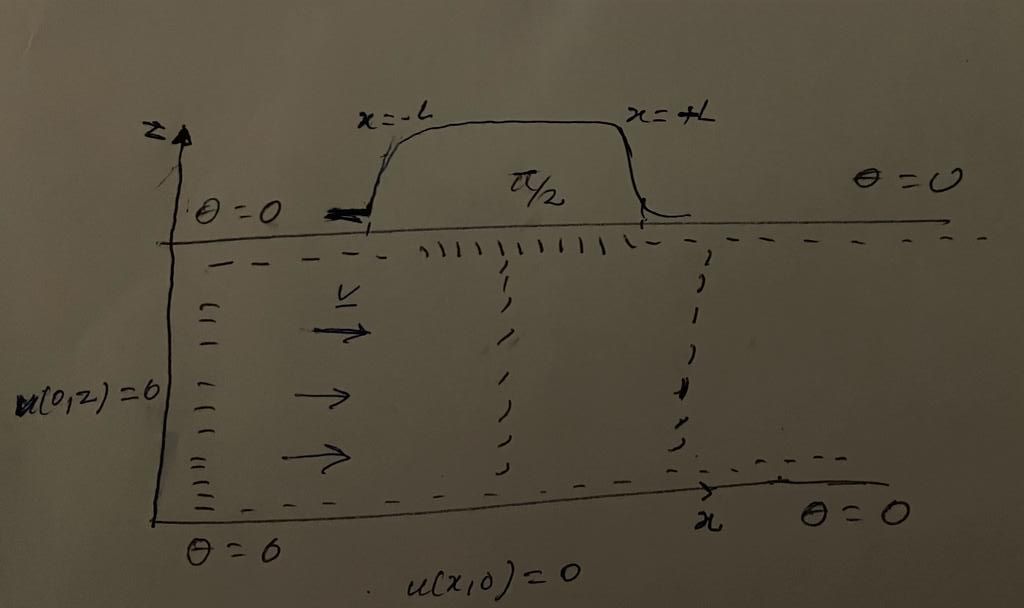

Please can someone help me to draw the attached figure?


[kaiserkarl13]

I'll let you tinker with it to get it to look how you want, but here's a start:

Code: Select all

\documentclass{standalone}
\usepackage{tikz}
\begin{document}
\begin{tikzpicture}
  \draw[->](0,0) -- (3,0) node [below] {$x$};
  \draw (3,0) -- (4,0) node [below] {$\theta = 0$};
  \draw[->](0,0) -- (0,3) node [left] {$z$};
  \draw (0,2) -- ++(4,0) node [above] {$\theta = 0$};
  \node [above] at (2,2) {$\pi/2$};
  \node [above right] at (0.1,2) {$\theta = 0$};
  \foreach \y in {0.1,0.2,...,1.8} {
    \draw (0.2,\y) -- ++(0.05,0);
    \draw (2,\y) -- ++(0.05,0.05);
    \draw (3,\y) -- ++(0,0.05);
  }
  \foreach \y in {0.5,1.0,1.5}
    \draw[->] (1,\y) -- ++(0.5,0);
  \node at (1.25,1.75) {$\underline{v}$};
  \foreach \x in {0,0.1,...,4} {
    \draw (\x,0.1) -- ++(0.05,0);
    \draw (\x,1.9) -- ++({16*pi*\x}:0.05);
  }
\end{tikzpicture}
\end{document}
