Math & Science ⇒ ChemFig reaction scheme

[Ron_S]

Good day,

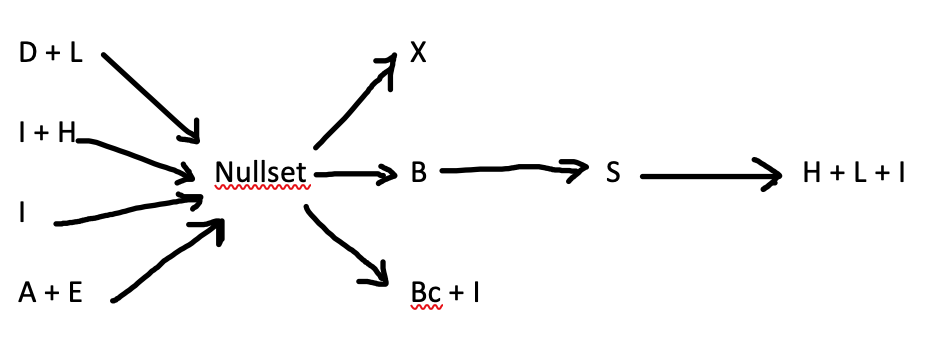

I'm very new to the ChemFig package. I would like to generate the following reaction scheme:

Screen Shot 2022-03-30 at 5.22.31 pm.png (34.44 KiB) Viewed 3158 times

My problem is how to code the first four input reactants, as it cannot be tagged with @, and the Nullset has already been labelled. My code so far is:

Code: Select all

\schemestart
\subscheme{$D\+L$}\arrow(dl--emp){->[*{0}$k_{15}$]}[-45]$\emptyset$
\arrow(@emp--b){->[$\mu$]}$B$\arrow(@b--s){->[$p_2$]}$S$\arrow(@s--hli){->[$k_9$]}$H\+L\+I$
\arrow(@emp--x){->[*{0}$\gamma$]}[45]$X$
\schemestop

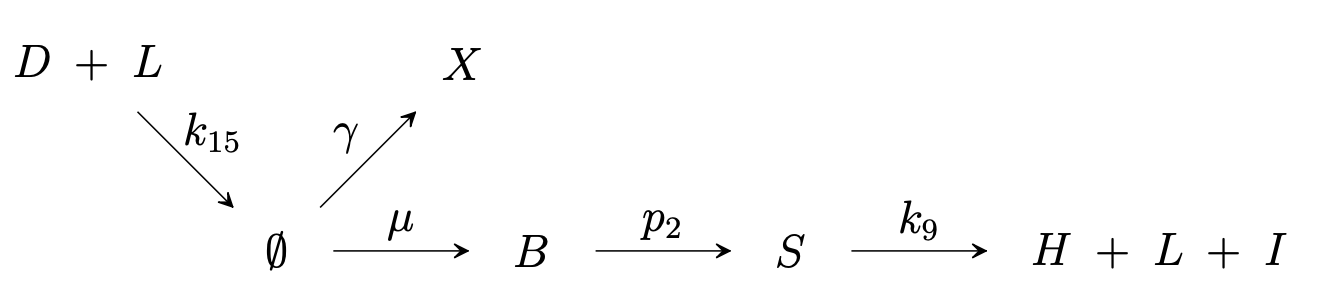

Screen Shot 2022-03-30 at 5.46.43 pm.png (31.25 KiB) Viewed 3156 times

Could someone please advise? Thank you!

[cgnieder]

Crosspost: https://tex.stackexchange.com/questions/639039/. The answer there by polyn has the following suggestion:

Code: Select all

\documentclass{article}
\usepackage{chemfig}
\begin{document}
\schemestart
\subscheme{
\subscheme{D + L}
\arrow(a--b){0}[-90,0.3]
\subscheme{I + H}
\arrow{0}[-90,0.3]
\subscheme{I \phantom{+} \phantom{H}}
\arrow(c--d){0}[-90,0.3]
\subscheme{A + E}
}
\arrow(--emp){0}
\(\emptyset\)
\arrow
B
\arrow
S
\arrow
H + L + I
\arrow(@a.mid east--@emp.mid west)
\arrow(@b.mid east--@emp.mid west)
\arrow(@c.mid west--@emp.mid west)
\arrow(@d.mid east--@emp.mid west)
\arrow(@emp.mid east--)[45]
X
\arrow(@emp.mid east--.mid west)[-45]
\subscheme{Bc + I}
\schemestop
\end{document}

enter image description here
