I want to make this image into a table using pgf of tikz, which one should I use, may anyone give an example please?

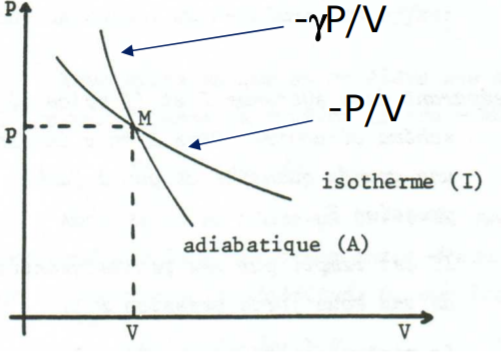

- pgf-plot.png (118.59 KiB) Viewed 3499 times
-V
Math & Science ⇒ Thermodynamics plot
-
rotciv1
Thermodynamics plot
Hey everyone,
I want to make this image into a table using pgf of tikz, which one should I use, may anyone give an example please?
Appreciate it,
-V
I want to make this image into a table using pgf of tikz, which one should I use, may anyone give an example please?
Appreciate it,
-V
Last edited by Stefan Kottwitz on Sun Oct 10, 2021 7:37 pm, edited 1 time in total.
Reason: external image uploaded to forum
Reason: external image uploaded to forum
NEW: TikZ book now 40% off at Amazon.com for a short time.
-
Stefan Kottwitz
- Site Admin
- Posts: 10319
- Joined: Mon Mar 10, 2008 9:44 pm
Thermodynamics plot
Hi,
welcome to the forum!
I recommend to use the pgfplots package.
Resources:
welcome to the forum!
I recommend to use the pgfplots package.
Resources:
- pgfplots.net with a plot gallery
- tikz.net with a physics example TikZ gallery
- TeXample.net
- the
pgfplots manual
LaTeX.org admin
