Hi, and thanks for taking a look.

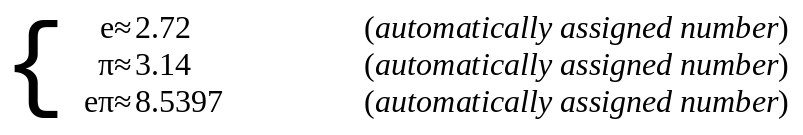

So, I am trying to make a bunch of equations that are aligned, individually automatically numbered, and all of them neatly packaged into an arbitrary set of delimiters. As they say, a picture is worth a thousand words; so, please see the attached image for a (very) schematic example of what I am trying to achieve.
Any ideas on how to do this would be kindly appreciated.
p.s. solution found here.
Math & Science ⇒ (solved) Aligned equations, individually numbered, all inside one pair of delimiters?
(solved) Aligned equations, individually numbered, all inside one pair of delimiters?
- Attachments
-
- math-visual-example.png (25.43 KiB) Viewed 9822 times
Last edited by Mrhnhrm on Thu Dec 05, 2019 8:17 am, edited 1 time in total.
NEW: TikZ book now 40% off at Amazon.com for a short time.
- Ijon Tichy
- Posts: 640
- Joined: Mon Dec 24, 2018 10:12 am
(solved) Aligned equations, individually numbered, all inside one pair of delimiters?
Sorry, but I can no longer participate here as the administrator is trampling on my wishes on one of his other platforms.

(solved) Aligned equations, individually numbered, all inside one pair of delimiters?
Many thanks. May I ask for some further explanation? I looked through the (rather concise) manual for the package cases, and I couldn't figure out how to customize the alignment. The expressions (left part of the cases environment) seem to be invariably left-aligned, and the explanations (right part of the environment) form another left-aligned column, with unnecessarily wide horizontal gap. My example renders like this:Ijon Tichy wrote:→ https://latex.org/forum/viewtopic.php?p=93527#p93527
Code: Select all
\documentclass[]{article}
\usepackage{cases}
\begin{document}
\begin{numcases}{}
e \approx 2.72 \\
\pi \approx 3.14 \\
e\pi \approx 8.5397
\end{numcases}
\begin{numcases}{}
e & $ \approx 2.72 $ \\
\pi & $ \approx 3.14 $ \\
e\pi & $ \approx 8.5397 $
\end{numcases}
\end{document}
- Attachments
-
- Screenshot_20191203_194751.png (18.83 KiB) Viewed 9813 times
(solved) Aligned equations, individually numbered, all inside one pair of delimiters?
... and nailed it. Package empheq gets the job done. For example...
Code: Select all
\documentclass[]{article}
\usepackage{amsmath}
\usepackage{empheq}
\begin{document}
\begin{subequations}
\begin{empheq} [left=\empheqlbrace] {align}
e & \approx 2.72 \\
\pi & \approx 3.14 \\
e\pi & \approx 8.5397
\end{empheq}
\end{subequations}
\end{document}
