Graphics, Figures & Tables ⇒ Creating a multicoumn table in landscape mode with bulletpoints

[Hippity_Hoppitus]

Dear everyone

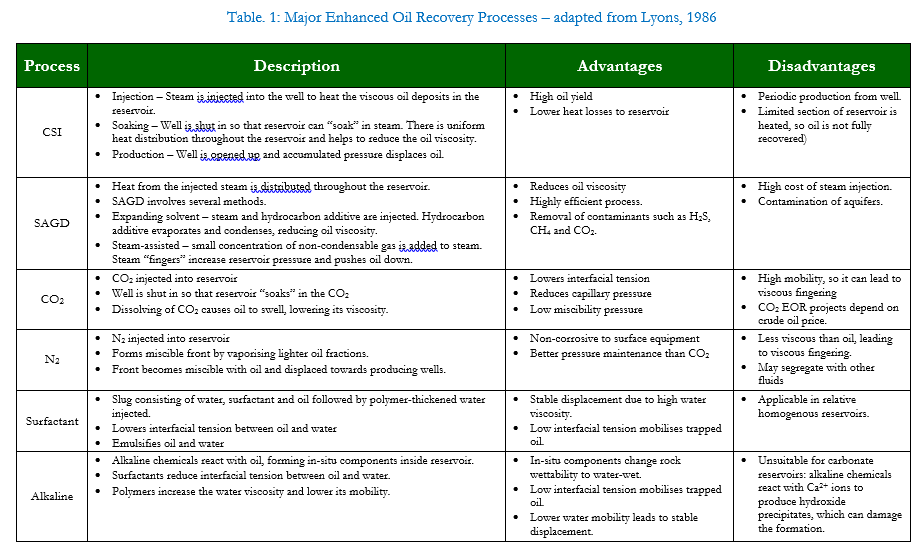

I am trying to compile a table (containing many words and bulletpoints) for my thesis. I want to rotate this table so that it can be viewed in landscape mode. Unfortunately, I am unable to add any items (bulletpoints) despite trying \itemize and \enumerate. I have tried several suggestions, but all the examples I have been shown all have only three columns, whereas my table has 4 columns, and being new to Latex, am not sure how to approach this. Any help or suggestions would be highly appreciated. I have attached my code and also the table (compiled in Word) to give a view what I want my table to look like. Thank you so much.

Code: Select all

\documentclass[12pt]{article}
\usepackage{amsmath, amsfonts, amssymb}
\usepackage{graphicx}
\usepackage{rotating}

\begin{document}
\begin{sidewaystable}
\begin{center}
    \caption{Major Enhanced Oil Recovery Processes }
    \begin{tabular}{|c|c|c|c|}
    \hline &&\\
    \textbf{Process} &
    \textbf{Description} &
    \textbf{Advantages} &
    \textbf{Disadvantages}\\
    &&\\
    \hline
    &&\\
    \textbf{CSI}
    & 1
    & 2
    & 3
    \\
    &&\\
    \hline
    &&\\
    \textbf{SAGD}
    & 1
    & 2
    & 3
    \\
    &&\\
    \hline
    &&\\
    \textbf{CO$_2$}
    & 1
    & 2
    & 3
    \\
    &&\\
    \hline
    &&\\
    \textbf{N$_2$}
    & 1
    & 2
    & 3
    \\
    &&\\
    \hline
    &&\\
    \textbf{Surfactant}
    & 1
    & 2
    & 3
    \\
    &&\\
    \hline
    &&\\
    \textbf{Alkaline}
    & 1
    & 2
    & 3
    \\
    &&\\
    \hline
    \end{tabular}
\end{center}

\end{sidewaystable}

\end{document}

[thomasb]

Here :

Code: Select all

\documentclass[12pt]{article}
\usepackage{amsmath, amsfonts, amssymb}
\usepackage{graphicx}
\usepackage{rotating}

\begin{document}

% Minimal example
\begin{tabular}{|p{3cm}|}
  \hline
  \textbf{Name:} Foo \\
  \hline
  \textbf{Main success scenario:} \\
  \begin{enumerate}
  \item Entry action
  \item next steps\ldots
  \end{enumerate}\\
  \hline
\end{tabular}

% From your table
\begin{sidewaystable}
  \begin{center}
    \caption{Major Enhanced Oil Recovery Processes }
    \begin{tabular}{|c|p{3cm}|c|c|}
      \hline &&&\\
      \textbf{Process} &
      \textbf{Description} &
      \textbf{Advantages} &
      \textbf{Disadvantages}\\
      &&&\\
      \hline
      &&&\\
      \textbf{CSI}
      & \begin{enumerate}
        \item Entry action
        \item next steps\ldots
        \end{enumerate}
      & 2
      & 3
      \\
      &&&\\
      \hline
      &&&\\
      \textbf{SAGD}
      & 1
      & 2
      & 3
      \\
      &&&\\
      \hline
    \end{tabular}
  \end{center}

\end{sidewaystable}

\end{document}

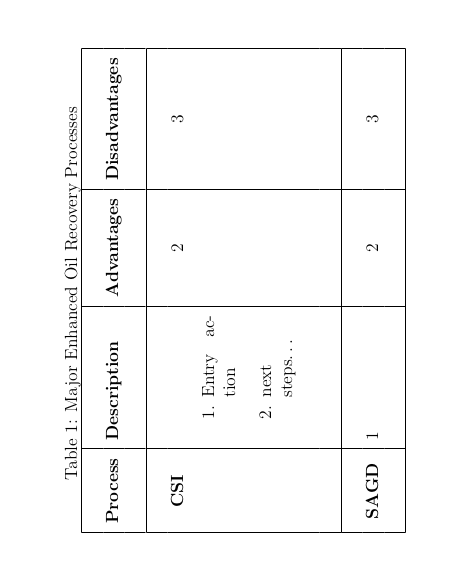

sidewaystable1_Capture d’écran_2019-05-27_15-03-41.png (26.13 KiB) Viewed 7503 times

sidewaystable2_Capture d’écran_2019-05-27_15-03-41.png (7.58 KiB) Viewed 7503 times
