Math & Science ⇒ adding tabular in equation/math enviroment

[afa0011]

can you help me fith the following expression please ?

\begin{equation}
F=\left\lbrace
\begin{tabular}{ll}
$F_{app}\mu_{k}\sin (v) $ & $if \quad v>0$, \\
$ F_{app}$ & if$ \quad v=0 \quad and \quad F_{app}\leq F_{app} \mu_{s}$,
\end{tabular}
\right
%\label{RRRR}
\end{equation}

[Stefan Kottwitz]

Hi!

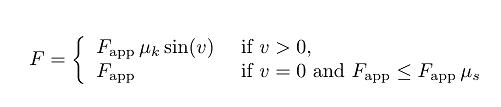

There's a math equivalent to tabular, it's array. Here is how I would do it:

Code: Select all

\documentclass{article}
\usepackage{amsmath}
\DeclareMathOperator\app{app}
\begin{document}
\begin{equation}
  F = \left\lbrace
        \begin{array}{ll}
           F_{\app} \, \mu_{k} \sin(v) & \text{ if } v > 0, \\
           F_{\app} & \text{ if } v = 0
                          \text{ and } F_{\app}\leq F_{\app} \, \mu_{s}
        \end{array}
      \right.
%\label{RRRR}
\end{equation}
\end{document}

I defined an operator, since it that index looks like an operator (that's usually written in upright shape) and not like a product of a, p, and p. Furthermore, I treated text (if, and) as text. What do you think?


Stefan

[mas]

Just a small change to Stefan's answer. I suggest the use of {cases} for typesetting the equation. Here is the code:

Code: Select all

\documentclass{article}
\usepackage{amsmath}
\DeclareMathOperator\app{app}
\begin{document}
\begin{equation}
  F =
    \begin{cases}
       F_{\app} \, \mu_{k} \sin(v) & \text{ if } v > 0, \\
       F_{\app} & \text{ if } v = 0
                      \text{ and } F_{\app}\leq F_{\app} \, \mu_{s}
    \end{cases}
%\label{RRRR}
\end{equation}
\end{document}
