Math & Science ⇒ How to properly label two aligned equations on the same line?

[Cham]

I rarely do the following (it's the first time, actually!). To save space on a page, I have to align two labeled equations on the same line. Then I need to make a reference to these equations in the text. The MWE below reproduce the issue :

Code: Select all

\documentclass[]{article}
\usepackage{amsmath}
\begin{document}

Here are two funny equations :
	\begin{align}
	\label{a label}
		a &= b,
		& c &= d.
	\end{align}
Equation \eqref{a label}a is not the same as equation \eqref{a label}b.

\end{document}

I need the equation numbers to be properly shown as (1a) and (1b), not as (1)a and (2)b like what is done by hand in this code. What should be the proper way of doing this?

[Cham]

Ok, forget it! I solved my problem simply by reformulating the text itself.

[Stefan Kottwitz]

Hi Cham,

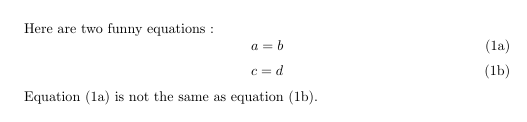

a proper way could be using the subequations environment:

Code: Select all

\documentclass{article}
\usepackage{amsmath}
\begin{document}
\noindent
Here are two funny equations :
\begin{subequations}
  \begin{equation}
    \label{eq-a}
      a = b
  \end{equation}
  \begin{equation}
    \label{eq-b}
    c = d
  \end{equation}
\end{subequations}
Equation \eqref{eq-a} is not the same as equation \eqref{eq-b}.
\end{document}


Stefan

[Cham]

Can you place the two equations side by side, on the same line ?

[Stefan Kottwitz]

There's support for side by side and alignment in general, just mixing in sub-numbering in aligned environments is not so common and less supported by default. For example, there cannot be several labels for references in the same align environment line.

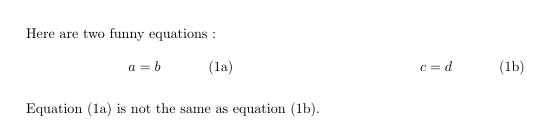

But it's easy doing it with \parbox or \minipage and in the same way above. Or here, I simply use tabularx, the X columns share the available space symmetrically, in the middle I just have a column for separation space. It's not so unusual: for arranging stuff in columns, a table is a natural choice.

Code: Select all

\documentclass{article}
\usepackage{amsmath}
\usepackage{tabularx}
\begin{document}
\noindent
Here are two funny equations :

\begin{subequations}
  \begin{tabularx}{\textwidth}{Xp{2cm}X}
  \begin{equation}
    \label{eq-a}
      a = b
  \end{equation}
  & &
  \begin{equation}
    \label{eq-b}
    c = d
  \end{equation}
  \end{tabularx}
\end{subequations}
Equation \eqref{eq-a} is not the same as equation \eqref{eq-b}.
\end{document}


Stefan

[Cham]

Thanks a lot for the explanations and examples. May be usefull in the future.
