Text Formatting ⇒ Troubles with subsubsection styling

[Cham]

I'm having a few problems with this MWE code. I would like to customize the subsubsection styling only, so I used the titlesec and tocloft packages. Maybe there's a better and simpler way to customize the subsubsection in both the main text and in the ToC ? I want it to be displayed in bold sans-serif font.

The problem is that by adding the titlesec and tocloft commands, the first intro text has a garbled title, and the ToC is put on the same page, while it should stay on the next page.

The code below (with titlesec and tocloft turned OFF) gives a perfect display. Turning ON the commands gives the issues. How to fix these ?

Code: Select all

\documentclass[11pt,twoside]{book}
\usepackage[total={6.25in,10in},left=1.25in,top=0.5in,includehead,includefoot]{geometry}
%\usepackage[pagestyles,medium]{titlesec}
%\titleformat*{\subsubsection}{\bfseries\sffamily}
%\usepackage{tocloft}
%\renewcommand{\cftsubsubsecfont}{\normalfont\sffamily\footnotesize}
\usepackage{hyperref}

\begin{document}

\frontmatter

\begin{titlepage}
	\centering
	\vfill {\Huge Some big title !} \vfill
	\vfill Version 1.0
\end{titlepage}

\thispagestyle{empty}
{\centering\subsubsection*{Title of this small part}}

\noindent
Some simple text about the title page.

\pagestyle{plain}
\setcounter{tocdepth}{3}
\tableofcontents
\mainmatter

\chapter{Chapter title}
\section{Section title}
\subsection{Notion de variable}
Blabla
\subsection{Subsection title}
Blablabla
\subsubsection{Subsubsection title}
Blablabla
\subsection{Subsection title}
Blablabla
\subsubsection{Subsubsection title}
Blablabla
\subsubsection{Subsubsection title}
Blablabla
\subsection{Subsection Title}
Blablabla
\subsubsection{Subsubsection title}
Blablabla
\subsubsection{Subsubsection title}
Blablabla
\subsubsection{Subsubsection title}
Blablabla
\subsection{Subsection Title}
Blablabla
\subsection{Subsection Title}
Blablabla

\end{document}

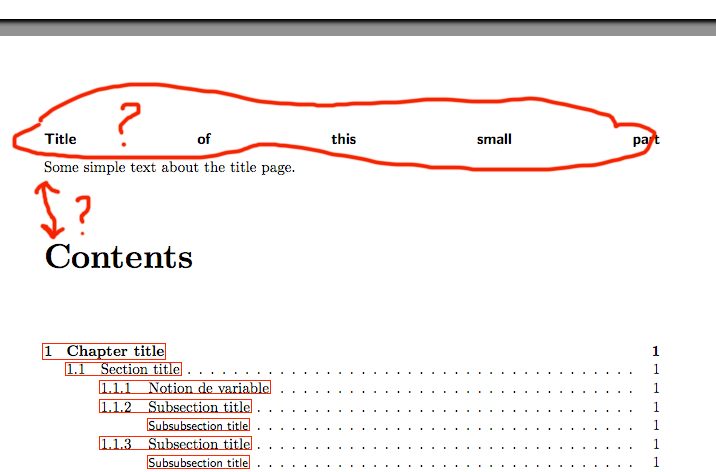

Here's a preview of both issues :


[Johannes_B]

If you really just want to change the appearance to be sans serif and centered, i would use patching.

Code: Select all

\documentclass[11pt,twoside]{book}
    \usepackage[total={6.25in,10in},left=1.25in,top=0.5in,includehead,includefoot]{geometry}
    \usepackage{etoolbox}
    \patchcmd{\subsubsection}{\bfseries}{\centering\bfseries\sffamily}{}{}
    \usepackage[titles]{tocloft}
    \renewcommand{\cftsubsubsecfont}{\normalfont\sffamily\footnotesize}
    \usepackage{hyperref}

    \begin{document}

    \frontmatter

    \begin{titlepage}
    	\centering
    	\vfill {\Huge Some big title !} \vfill
    	\vfill Version 1.0
    \end{titlepage}

    \thispagestyle{empty}
    \subsubsection*{Title of this small part}

    \noindent
    Some simple text about the title page.

    \pagestyle{plain}
    \setcounter{tocdepth}{3}
    \tableofcontents
    \mainmatter

    \chapter{Chapter title}
    \section{Section title}
    \subsection{Notion de variable}
    Blabla
    \subsection{Subsection title}
    Blablabla
    \subsubsection{Subsubsection title}
    Blablabla
    \subsection{Subsection title}
    Blablabla
    \subsubsection{Subsubsection title}
    Blablabla
    \subsubsection{Subsubsection title}
    Blablabla
    \subsection{Subsection Title}
    Blablabla
    \subsubsection{Subsubsection title}
    Blablabla
    \subsubsection{Subsubsection title}
    Blablabla
    \subsubsection{Subsubsection title}
    Blablabla
    \subsection{Subsection Title}
    Blablabla
    \subsection{Subsection Title}
    Blablabla

    \end{document}

[Cham]

It's working nicely ! But I don't want the subsubsection titles to be centered, except the first introduction one (which isn't really a "subsubsection").

What would be the best way of defining a small introduction title (to describe a picture on the title page) ?

I'm also getting an error message in my full document :

LaTeX Error: Command \c@lofdepth already defined.
Or name \end... illegal, see p.192 of the manual.

See the LaTeX manual or LaTeX Companion for explanation.
...
l.607 \newcounter{lofdepth}
\setcounter{lofdepth}{1}

The tocloft package is triggering this.

What is happening here?

[Johannes_B]

You might have a package like subfig loaded. Or subcaption.

Concerning the not really a subsection heading: Do it manually. If you know what and why, you do not need semantic markup. Especially if you are misusing it.

[Cham]

Yes, I do have subfig loaded. How to fix this ToC depth problem ?

[Johannes_B]

Option subfigure

[Cham]

Option subfigure

What do you mean? Please, could you be more specific?

[Cham]

Ah! Ok, this appears to fix the issue :

Code: Select all

\usepackage[titles,subfigure]{tocloft}
