Graphics, Figures & Tables ⇒ Recreate Figure

[Wooldridge1]

Hello,

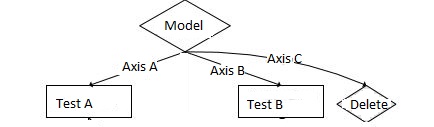

I have recreated this figure in PAINT. Because the quality is not good, I would like to recreate this figure in LaTeX. But I have no idea how I can do this. I hope you can help me.

Greetings & many thanks in advance!

[Stefan Kottwitz]

Welcome to the forum!

Seems to be pretty easy with TikZ. Did you already make it, or did you already ask somewhere else? I just want to know that before I make the effort to draw that.

Stefan

[Wooldridge1]

Dear Stefan,

I did not managed it. I call upon your help

Greetings and many thanks in advance!

[Stefan Kottwitz]

Here is a suggestion with a bit color.

Code: Select all

\documentclass[border=10pt]{standalone}
\usepackage{tikz}
\usetikzlibrary{quotes,shapes,positioning}
\tikzset{
  treenode/.style = {shape=rectangle, rounded corners,
                     draw, anchor=center,
                     text width=5em, align=center,
                     top color=white, bottom color=blue!20,
                     inner sep=1ex, font=\sffamily\normalsize},
  do/.style = {treenode, diamond, inner sep=0pt},
}
\begin{document}
\begin{tikzpicture}[-latex,
  [every edge quotes/.style={fill=white, font=\footnotesize}, auto=right]]
  \node [do] (model) {Model};
  \node [treenode, below left = 2cm and 2cm]  (A) {Test A};
  \node [treenode, below right = 2cm and 2cm] (B) {Test B};
  \node [do, below right = 1.8cm and 6cm]     (C) {Delete};
  \draw
    (model) edge ["Axis A"] (A)
    (model) edge ["Axis B"] (B)
    (model) edge ["Axis C", auto=left] (C)
  ;
\end{tikzpicture}
\end{document}


Stefan

[Wooldridge1]

Thank you so much, Stefan. Really helpful!
