I spent few days trying to "macrofy" the rendering of piechart, barchart, and spiderweb from raw data input wihtin the document. I wanted some high level API like
Code: Select all
\barchart
{5cm} %%label width
{ %% data (label/value)
apples/432,
banana/34,
pineapples/1223
}%%barchart
\spiderweb %% 0 to 100 grid
{4,5cm} %% radius for labels
{3,5cm} %% radius for spiderweb
{70} %% baseline score
{ %% data (label/score)
Fifty/10,
Sixty/20,
Seventy/50
}%%spiderweb
or
\def\colorCycleList{{"blue","red","yellow","green", "orange", "gray" }}
\piechart{
(Very Low,37),
(Low,23),
(Average,34),
(High,5),
(Very High,1)
}%%piechart
Macro for piechart with example :
Code: Select all
\documentclass{standalone}
\usepackage{tikz}
\usepackage{fp}
\usepackage{pgfplots}
\usepackage{xintexpr}
\usepackage{xstring}
%% originaly used with babel french, which causes some issues
%% wihout the following line
\usetikzlibrary{babel}
\def\colorCycleList{{"blue","red","yellow","green", "orange", "gray" }}
%%
%% #1 = list of titles and values (not percents)
%%
%% example :
%%
%% \piechart{
%% (Very Low,37),
%% (Low,23),
%% (Average,34),
%% (High,5),
%% (Very High,1)
%% }
%%
\newcounter{totalPieChart}
\newcommand{\piechart}[1]{
%compute total in order to compute percentages
\setcounter{totalPieChart}{0}
\xintForpair ##1##2 in{#1} \do {\addtocounter{totalPieChart}{##2}}
%get the number of colors in the \colorCycleList
\pgfmathparse{int(dim(\colorCycleList)-1)}
\edef\cycleColorMax{\pgfmathresult}
\begin{tikzpicture}[nodes = {font=\sffamily}, scale=1]
\def\angle{0}
\def\radius{3}
\newcount\cyclecount \cyclecount=-1
\newcount\ind \ind=-1
\xintForpair ##1##2 in{#1} \do {
\def\currentLoc{##2}
\def\name{##1}
\FPeval{\percent}{round(\currentLoc*100/\thetotalPieChart,2)}
\ifx\percent\empty\else % If \percent is empty, do nothing
\global\advance\cyclecount by 1 % Advance cyclecount
\global\advance\ind by 1 % Advance list index
\ifnum\cycleColorMax<\cyclecount % If cyclecount is larger than list
\global\cyclecount=0 % reset cyclecount and
\global\ind=0 % reset list index
\fi
\pgfmathparse{\colorCycleList[\the\ind]} % Get color from cycle list
\edef\color{\pgfmathresult} % and store as \color
% Draw angle and set labels
\draw[fill={\color!50},draw={\color!50!black!50}] (0,0) -- (\angle:\radius)
arc (\angle:\angle+\percent*3.6:\radius) -- cycle;
% do not print the percentage within the pie if the slice is too small
\ifnum5<\percent
\node at (\angle+0.5*\percent*3.6:0.7*\radius) {\percent\,\%};
\node[pin=\angle+0.5*\percent*3.6:\name] at (\angle+0.5*\percent*3.6:\radius) {};
\else
\node at (\angle+0.5*\percent*3.6:0.7*\radius) {};
\node[pin=\angle+0.5*\percent*3.6:\name~(\percent\,\%)] at (\angle+0.5*\percent*3.6:\radius) {};
\fi
%at (\angle+0.5*\percent*3.6:{\radius+1.3}) {\percent\%};
\pgfmathparse{\angle+\percent*3.6} % Advance angle
\xdef\angle{\pgfmathresult} % and store in \angle
\fi
};
\end{tikzpicture}
}
\begin{document}
\piechart{
(Very Low,873)
}
\piechart{
(Very Low,873),
(Low,1890)
}
\piechart{
(Very Low,873),
(Low,1890),
(Average,3755)
}
\piechart{
(Very Low,873),
(Low,1890),
(Average,3755),
(High,1165),
(Very High,325),
(Low,1890),
(Average,3755),
(Low,1890),
(Average,3755),
(Very Very High,5)
}
\end{document}

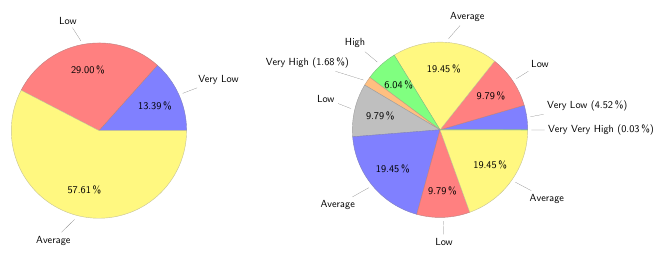

- pie-chart-1.png (17.6 KiB) Viewed 4067 times
- pie-chart-2.png (35.81 KiB) Viewed 4067 times
Code: Select all
\documentclass{standalone}
\usepackage{tikz}
\usepackage{pgfplots}
%% originaly used with babel french, which causes some issues
%% wihout the following line
\usetikzlibrary{babel}
%%
%% #1 = radius (4cm is good)
%% #2 = radius for labels (3.5cm)
%% #3 = score baseline (blue line)
%% #4 = list of titles and values
%%
%% example
%%
%% \spiderweb{4,5cm}{3,5cm}{70}{
%% Sécurité/10,
%% Maintenabilité/30,
%% Fiabilité/50,
%% Portabilité/70,
%% Performance/90
%% }
%%
\newcommand{\spiderweb}[4]{
\newcount\numberOfDimensionsForSpiderWebCounter \numberOfDimensionsForSpiderWebCounter=0
\foreach \Title/\Score in {#4} {
\global\advance\numberOfDimensionsForSpiderWebCounter by 1 % Advance cyclecount
}
\def\numberOfDimensionsForSpiderWeb{\the\numberOfDimensionsForSpiderWebCounter} % number of dimensions (config option)
\def\numberOfScaleUnits{100} % number of scale units (config option)
\def\calculatedAngleBetweenDimAxes{360/\numberOfDimensionsForSpiderWeb} % calculated angle between dimension axes
\newdimen\R % maximal diagram radius (config option)
\newdimen\L % radius to put dimension labels (config option)
\L=#1
\R=#2
\begin{tikzpicture}[nodes = {font=\sffamily}, scale=1]
\path (0:0cm) coordinate (O); % define coordinate for origin
% draw the spiderweb
\foreach \Title/\Value[count=\X] in {#4} {
\draw (\X*\calculatedAngleBetweenDimAxes+90:0) -- (\X*\calculatedAngleBetweenDimAxes+90:\R);
\node[pin=\X*\calculatedAngleBetweenDimAxes+90:{\Title}] at (\X*\calculatedAngleBetweenDimAxes+90:\R) {};
}
\foreach \Y in {0,...,10}{
\draw [opacity=0.3] (90:\Y*\R*10/\numberOfScaleUnits)
\foreach \X in {1,...,\numberOfDimensionsForSpiderWeb}{
-- (\X*\calculatedAngleBetweenDimAxes+90:\Y*\R*10/\numberOfScaleUnits)
} -- cycle;
}
% create paths
\foreach \Y in {0,...,\numberOfScaleUnits}{
\foreach \X in {1,...,\numberOfDimensionsForSpiderWeb}{
\path (\X*\calculatedAngleBetweenDimAxes+90:\Y*\R/\numberOfScaleUnits) coordinate (D\X-\Y);
\fill (D\X-\Y) circle (1pt);
}
}
\newcount\cyclecountDeux \cyclecountDeux=0
\foreach \Title/\Score in {#4} {
\global\advance\cyclecountDeux by 1 % Advance cyclecount
\def\X{\the\cyclecountDeux}
\def\Y{\Score}
\path (\X*\calculatedAngleBetweenDimAxes+90:\Y*\R/\numberOfScaleUnits) coordinate (S\X);
\fill (S\X) circle (1pt);
}
\newcount\cyclecount \cyclecount=1
\foreach \Title/\Score in {#4} {
\global\advance\cyclecount by 1 % Advance cyclecount
\ifnum\numberOfDimensionsForSpiderWebCounter<\cyclecount
\global\cyclecount=1
\fi
\newcount\nextcyclecount \nextcyclecount=\the\cyclecount;
\global\advance\nextcyclecount by 1
\ifnum\numberOfDimensionsForSpiderWebCounter<\nextcyclecount
\global\nextcyclecount=1
\fi
\draw [color=blue,line width=4pt,opacity=0.5] (D\the\cyclecount-#3) -- (D\the\nextcyclecount-#3);
\draw [color=red,line width=4pt,opacity=0.5] (S\the\cyclecount) -- (S\the\nextcyclecount);
}
\end{tikzpicture}
}
\begin{document}
\spiderweb{4,5cm}{3,5cm}{70}{
Chaos/10,
Order/30,
Neutral/50
}
\spiderweb{4,5cm}{3,5cm}{70}{
Security/10,
Maintenability/30,
Reliability/50,
Portability/70,
Efficiency/10
}
\spiderweb{4,5cm}{3,5cm}{70}{
Security/10,
Maintenability/30,
Reliability/50,
Portability/70,
Maintenability/30,
Reliability/50,
Portability/70,
Maintenability/30,
Reliability/50,
Portability/70,
Maintenability/30,
Reliability/50,
Portability/70,
Maintenability/30,
Reliability/50,
Portability/70,
Efficiency/10
}
\end{document}

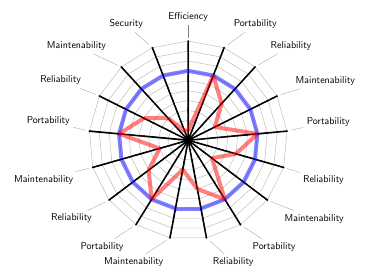

- spiderweb-chart-1.png (39.83 KiB) Viewed 4067 times
- spiderweb-chart-2.png (43.08 KiB) Viewed 4067 times
Code: Select all
\documentclass{report}
\usepackage[left=20mm,right=20mm, top=30mm, bottom=30mm,a4paper]{geometry}
\usepackage[usenames,dvipsnames,table,xcdraw]{xcolor}
\usepackage{pgfplots}
\usepackage{setspace}
\usepackage{siunitx}
\usepackage{tikz}
\usepackage{wallpaper}
\usepackage{xintexpr}
\usetikzlibrary{shadows}
%% originaly used with babel french, which causes some issues
%% wihout the following line
\usetikzlibrary{babel}
\makeatletter
\newcommand*{\getlengthincm}[1]{\strip@pt\dimexpr0.035146\dimexpr#1\relax\relax}
\makeatother
\newcommand{\nume}[1]{\num[group-separator=\text{~},output-decimal-marker={,},group-digits=integer,group-minimum-digits=4]{#1}}
%%
%% #1 = label width
%% #2 = list of titles and values
%%
%% example:
%%
%% \barchart{6cm}{
%% apples/2047,
%% pears/1244,
%% banana/1208,
%% {a fruit name with slashes / well / ...}/1055,
%% {a fruit name}/9009
%% }
%%
\newcommand{\barchart}[2]{
%% reorder list (thanks \foreach...)
\foreach \l/\x[count=\y] in {#2} {
\ifthenelse{\equal{\y}{1}}{
\xdef\orderedList{{\l}/\x}
}{
\xdef\orderedList{{\l}/\x, \orderedList}
}
}
%% compute bar length to adjust to textwidth
\newdimen\barlength
\setlength{\barlength}{\textwidth}
\addtolength{\barlength}{-#1}
\addtolength{\barlength}{-2cm}
\def\maxval{0} %% stores the maximum value of input data
\newcount\barcount \barcount=0
\foreach \l/\x[count=\y] in \orderedList {
\global\edef\maxval{\xinttheiiexpr max(\x,\maxval)\relax}
\global\advance\barcount by 1
}
\edef\maxval{\xintthefloatexpr (\maxval*110)/100\relax} %% add 10% to the max value for dimensionning the graph
\def\xstep{\xinttheiexpr [10] \getlengthincm{\barlength}/\maxval \relax} %% compute the x steps
{ %% add group to avoid spreading stretch value
\setstretch{0.6}
\begin{tikzpicture}[x={(\xstep,0)}]
\foreach \l/\x[count=\y] in \orderedList {
%% \l = label name
%% \x = input data
\node[left] at (0,\y) {
%% surround the data within a tabular
\begin{tabular}{>{
%\columncolor{white}
\raggedleft\arraybackslash}p{#1}} \small \l \end{tabular}
};
%% draw bar
\filldraw[blue!50, draw=blue!50!black] (0,\y-.3) rectangle (\x,\y+.3);
%% draw value as a node
\node[right] at (\x, \y) {\small\nume{\x}};
}
%% draw axis bar
\draw (0,0.5) -- (0,\xintthefloatexpr{\the\barcount + 0.5}\relax);
\end{tikzpicture}
}
}
\begin{document}
\barchart{3cm}{
{a line with slashes / and multiline}/666
}
\begin{figure}
\barchart{4cm}{
TITI/25000,
TATA/15000,
TUTU/3900
}
\caption{test bar chart}
\end{figure}
\end{document}
Feel free to use and comment.
Best regards.
