General ⇒ Text Positioning for End-notes

[AleCes]

Hello everybody,

I've got two problems with the enotez package and I cannot get to find any information to solve them in the guide.

1. Note numbers protrude beyond the left edge.
2. There's too much space between the lines of the same note. I'm not talking about space between different notes here.

Minimal example:

Code: Select all

\documentclass[a5paper, openany, 10pt]{book}
\usepackage[top=1.5cm,headsep=4pt,outer=2cm,inner=1cm,nofoot,bottom=1.5cm]{geometry}
\usepackage{blindtext}
\usepackage{bookmark}
\usepackage{fancyhdr}
\usepackage[reset=true,backref=true,totoc=chapter,split=chapter]{enotez}
\pagestyle{fancy}
\fancyhf{}
\fancypagestyle{plain}{%
\fancyhf{}
\renewcommand{\headrulewidth}{0pt}
\renewcommand{\footrulewidth}{0pt}}
\renewcommand{\chaptermark}[1]{%
\markboth{\MakeUppercase{%
\thechapter.%
\ #1}}{}}
\fancyhead[RO]{\rightmark}
\fancyhead[LE]{\leftmark}
\fancyhead[RE]{\thepage}
\fancyhead[LO]{\thepage}

\begin{document}
\chapter{Introduction}
\blindtext
\blindenumerate[10]
\chapter{Conclusion}
\blindtext
\blindenumerate[10]
\printendnotes
\end{document}

Thanks very much

[cgnieder]

Your example doesn't contain any notes, does it? Can you modify your MWE to actually show the problems your having?

Regards

[AleCes]

Your example doesn't contain any notes, does it? Can you modify your MWE to actually show the problems your having?

Regards

I'm sorry, I forgot to insert notes Here's the revised minimal example:

Code: Select all

\documentclass[a5paper, openany, 10pt]{book}
\usepackage[
  top=1.5cm,
  bottom=1.5cm
  headsep=4pt,
  outer=2cm,
  inner=1cm,
  nofoot
]{geometry}
\usepackage{blindtext}
\usepackage{bookmark}
\usepackage{fancyhdr}
\usepackage[
  reset=true,
  backref=true,
  totoc=chapter,
  split=chapter
]{enotez}

\fancyhf{}
\fancypagestyle{plain}{%
\fancyhf{}
\renewcommand{\headrulewidth}{0pt}
\renewcommand{\footrulewidth}{0pt}}
\renewcommand{\chaptermark}[1]{%
\fancyhead[RO]{\rightmark}
\fancyhead[LE]{\leftmark}
\fancyhead[RE]{\thepage}
\fancyhead[LO]{\thepage}
\pagestyle{fancy}
\markboth{\MakeUppercase{\thechapter.\ #1}}{}}

\begin{document}
  \chapter{Introduction}
    \blindtext
    \endnote{\blindtext}

  \chapter{Conclusion}
    \blindtext
    \endnote{\blindtext}
    \printendnotes
\end{document}

[cgnieder]

You may want to use a different instance of the list, maybe itemize. (The default paragraph instance is missing a \par which is why the notes have the wrong leading. I'll fix this.):

Code: Select all

\documentclass[a5paper, openany, 10pt]{book}
\usepackage[top=1.5cm,headsep=4pt,outer=2cm,inner=1cm,nofoot,bottom=1.5cm]{geometry}
\usepackage{blindtext}
\usepackage{bookmark}
\usepackage{enotez}

\setenotez{
  reset = true ,
  backref = true ,
  totoc = chapter ,
  split = chapter ,
  list-style = itemize
}

\begin{document}
\chapter{Introduction}
\blindtext
\endnote{\blindtext}
\blindtext
\endnote{\blindtext}

\chapter{Conclusion}
\blindtext
\endnote{\blindtext}
\blindtext
\endnote{\blindtext}

\printendnotes
\end{document}

Regards

[AleCes]

I've already tried the itemize option, but it's not of my liking because:

1. Two-digits numbers protrude inward.
2. Text is indented only in the first line.

Isn't there a workaround code to patch the package on the fly?

[cgnieder]

Re 1.: redefine \enmark.

Re 2.: I don't understand what you mean.

Code: Select all

\documentclass[a5paper, openany, 10pt]{book}
\usepackage[top=1.5cm,headsep=4pt,outer=2cm,inner=1cm,nofoot,bottom=1.5cm]{geometry}
\usepackage{blindtext}
\usepackage{bookmark}
\usepackage{enotez}

\setenotez{
  reset = true ,
  backref = true ,
  totoc = chapter ,
  split = chapter ,
  list-style = itemize
}
\renewcommand*\enmark[1]{\llap{#1}}

\begin{document}
\chapter{Introduction}
\blindtext
\endnote{\blindtext}
\blindtext
\endnote{\blindtext}
\blindtext
\endnote{\blindtext}
\blindtext
\endnote{\blindtext}
\blindtext
\endnote{\blindtext}
\blindtext
\endnote{\blindtext}
\blindtext
\endnote{\blindtext}
\blindtext
\endnote{\blindtext}
\blindtext
\endnote{\blindtext}
\blindtext
\endnote{\blindtext}


\printendnotes
\end{document}


Regards

[AleCes]

Never mind, \enmark both points.

Thank you very much!!!

[AleCes]

Sorry to reopen the topic but I've just remarked that if both \usepackage{fontspec} and \setenotez{backref=true} are present in the prologue, then note markers on the main text cause the line to exceed its normal height and the appearance is ugly.

New minimal example:

Code: Select all

\documentclass[a5paper, openany, 10pt]{book}
\usepackage{fontspec}
\setmainfont{FreeSerif} % or any other font, the result doesn't change
\usepackage[top=1.5cm,headsep=4pt,outer=2cm,inner=1cm,nofoot,bottom=1.5cm]{geometry}
\usepackage{blindtext}
\usepackage{bookmark}
\usepackage{enotez}
\setenotez{
reset = true ,
backref = true ,
totoc = chapter ,
split = chapter ,
list-style = itemize
}
\renewcommand*\enmark[1]{\llap{#1}}

\begin{document}
\chapter{Introduction}
\blindtext
\endnote{\blindtext}
\blindtext
\endnote{\blindtext}
\blindtext
\endnote{\blindtext}
\blindtext
\endnote{\blindtext}
\blindtext
\endnote{\blindtext}
\blindtext
\endnote{\blindtext}
\blindtext
\endnote{\blindtext}
\blindtext
\endnote{\blindtext}
\blindtext
\endnote{\blindtext}
\blindtext
\endnote{\blindtext}
\printendnotes
\end{document}

[cgnieder]

I've just remarked that if both \usepackage{fontspec} and \setenotez{backref=true} are present in the prologue, then note markers on the main text cause the line to exceed its normal height and the appearance is ugly.

I cannot reproduce this. I haven't FreeSerif installed so I used another font: everything looks normal. Can you attach a picture maybe?

Regards

[AleCes]

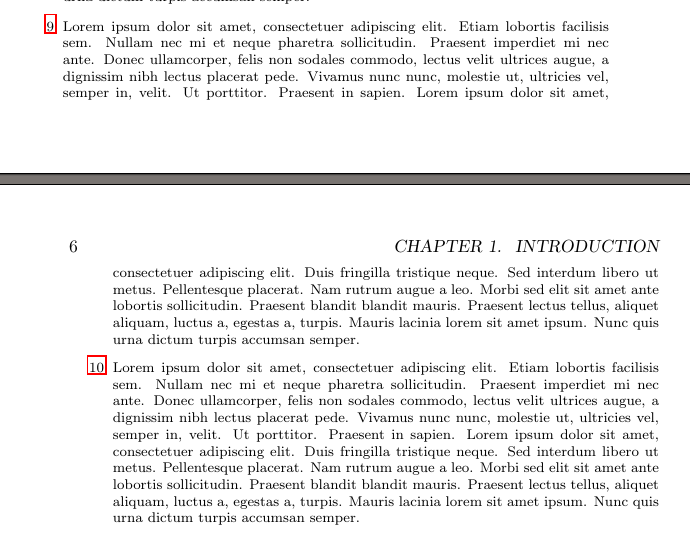

I uploaded a pdf, the font this time is Linux Libertine, maybe you have this one.
