Text Formatting ⇒ Adjusting text in family tree nodes

[anta40]

Let's say we have this hypothetical family tree

Code: Select all

\documentclass{beamer}
\usepackage{tikz}
\usepackage{verbatim}
%\usepackage[active,tightpage]{preview}
%\PreviewEnvironment{tikzpicture}
%\setlength\PreviewBorder{15pt}%
\usetheme{default}
\usetikzlibrary{trees}
\begin{document}


\begin{frame}{Hello}

A fictionary family tree

\begin{center}
\begin{tikzpicture}[
  man/.style={rectangle,draw,fill=blue!20},
  woman/.style={rectangle,draw,fill=red!20,rounded corners=.8ex},
  grandchild/.style={grow=down,xshift=1em,anchor=west,
    edge from parent path={(\tikzparentnode.south) |- (\tikzchildnode.west)}},
  first/.style={level distance=6ex},
  second/.style={level distance=12ex},
  third/.style={level distance=18ex},
  level 1/.style={sibling distance=5em}]
    % Parents
    \coordinate
      child[grow=left] {node[man,anchor=east]{Cyrus the Great}}
      child[grow=right] {node[woman,anchor=west]{Elizabeth}}
      child[grow=down,level distance=0ex]
    [edge from parent fork down]
    % Children and grandchildren
    child{node[man] {John the Conqueror}}
    child{node[man] {Ivan the Terrible}}
    child {node[woman] {Joanne of Arc}}
    child {node[man] {Richard Lionheart}}
    child {node[woman]{Mata Hari}};
\end{tikzpicture}
\end{center}
\end{frame}



\end{document}

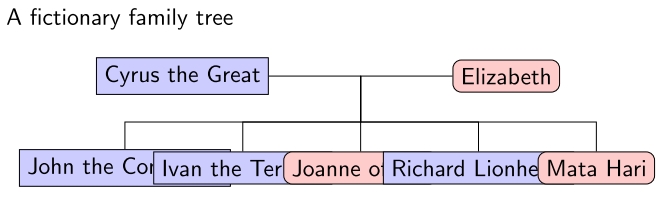

Due to long names, the nodes will be jammed like this. So I have several questions in mind:
1. How to insert linebreaks into the nodes?
2. How to adjust the fonst size?
3. How to adjust the distance between nodes?

Thank you

[Stefan Kottwitz]

You can do all this by modifying styles.

1. You can use \\, but add an alignment option, such as align=center.
2. Add an option such as font=\small.
3. Adjust a distance value, such as level 1/.style={sibling distance=6em}].

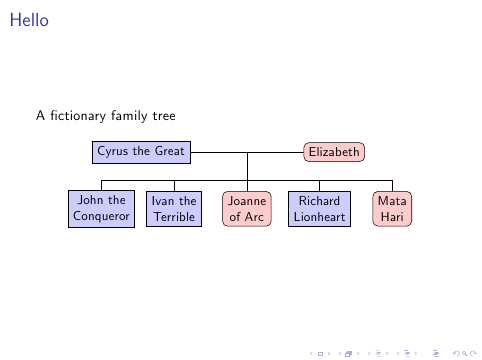

A complete example with the changes:

Code: Select all

\documentclass{beamer}
\usepackage{tikz}
\usepackage{verbatim}
%\usepackage[active,tightpage]{preview}
%\PreviewEnvironment{tikzpicture}
%\setlength\PreviewBorder{15pt}%
\usetheme{default}
\usetikzlibrary{trees}
\begin{document}


\begin{frame}{Hello}

A fictionary family tree

\begin{center}
\begin{tikzpicture}[
  man/.style={rectangle,draw,fill=blue!20,align=center,font=\small},
  woman/.style={rectangle,draw,fill=red!20,rounded corners=.8ex,align=center,font=\small},
  grandchild/.style={grow=down,xshift=1em,anchor=west,
    edge from parent path={(\tikzparentnode.south) |- (\tikzchildnode.west)}},
  first/.style={level distance=6ex},
  second/.style={level distance=12ex},
  third/.style={level distance=18ex},
  level 1/.style={sibling distance=5em}]
    % Parents
    \coordinate
      child[grow=left] {node[man,anchor=east]{Cyrus the Great}}
      child[grow=right] {node[woman,anchor=west]{Elizabeth}}
      child[grow=down,level distance=0ex]
    [edge from parent fork down]
    % Children and grandchildren
    child{node[man] {John the\\Conqueror}}
    child{node[man] {Ivan the\\Terrible}}
    child {node[woman] {Joanne\\of Arc}}
    child {node[man] {Richard\\Lionheart}}
    child {node[woman]{Mata\\Hari}};
\end{tikzpicture}
\end{center}
\end{frame}

\end{document}


Stefan
