Page Layout ⇒ Image Next to Chapter Heading

[Compaq]

Hi folks!

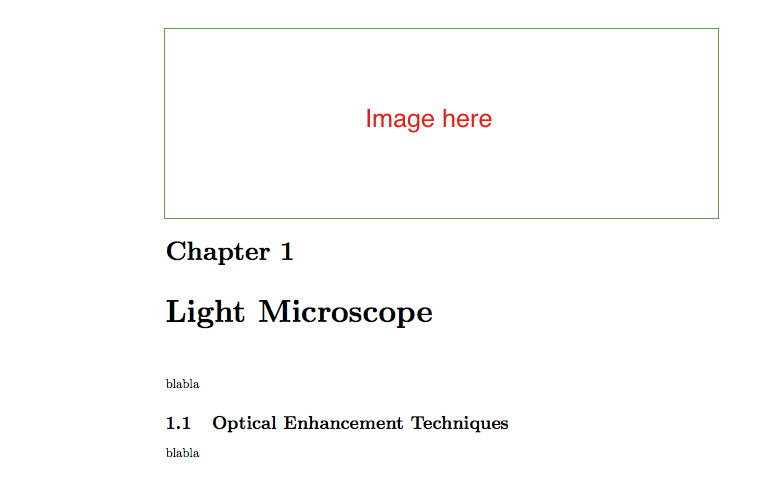

I am working on a paper on microscopy techniques, and I would to have an example image next to the chapter heading. I see there is room for it, but I am not able to come up with a code that puts my image where I'd like. I thought about maybe some minipages, but I'm not sure. Some input would be much appreciated. A small example follows at the end of the post. The output of that example is the attachment (the page continues on, naturally, but I included only the part of interest).

I appreciate any help I can get. Also, if my suggested page-layout is very ugly, please let me know, and maybe you have a better option

Code: Select all

\documentclass{report}

\usepackage{graphicx}

\begin{document}

\chapter{Light Microscope}
blabla

\section{Optical Enhancement Techniques}

blabla

\end{document}

[mas]

You can get all sorts of layouts for the chapter headings with the package titlesec. The following MWE should give you an idea to proceed.

Code: Select all

\documentclass{report}

\usepackage{graphicx}
\usepackage[explicit,raggedright]{titlesec}

\titleformat{\chapter}[block]
{}
{\includegraphics[width=\textwidth,height=1in]{example-image-a}\\}
{0pt}
{\large\chaptertitlename\ \thechapter\\%
                 \LARGE\bfseries\filright#1}[]

\begin{document}

\chapter{Light Microscope}
blabla

\section{Optical Enhancement Techniques}

blabla

\end{document}
