Graphics, Figures & Tables ⇒ Figure not centered

[newpuppet]

Hi all,

I'm quite newbie to LaTeX, so I need some help.

I am writing a project in which i need to insert some figure centered in the page and I'm using this code.

Code: Select all

\documentclass[11pt]{article}
\usepackage[utf8]{inputenc}
\usepackage{graphicx}
\usepackage{amsmath}
\usepackage{listings}

\begin{document}
  \begin{figure}[htbp]
    \centering
    \includegraphics{es2_1_cavo_reale_150.jpg}
  \end{figure}
\end{document}

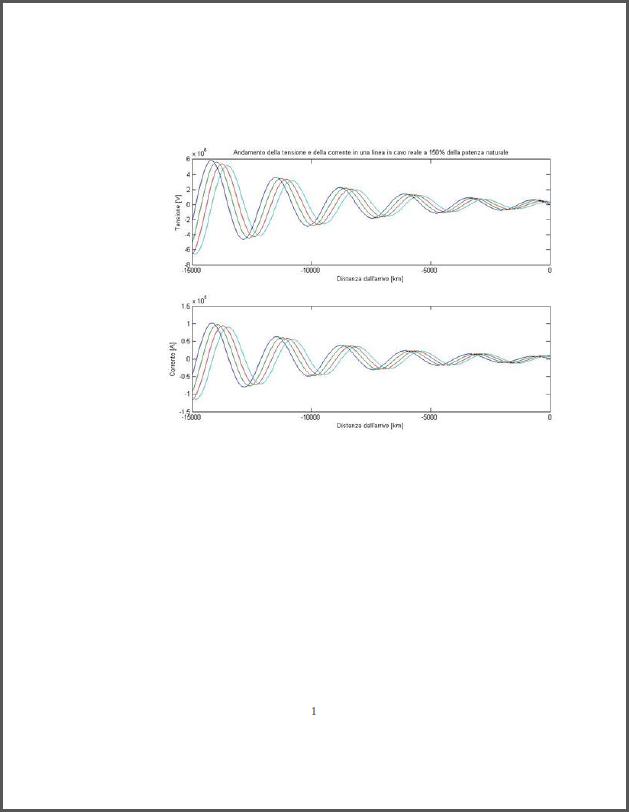

The problem is that the output PDF shows the picture but it's not centered but aligned on the right of the page. What i did wrong?


Thank you very much for your help and sorry for bad English

[localghost]

Do you get any warning in the log file (*.log)? I bet that the figure is simply too wide and sticks out into the right margin.


Best regards and welcome to the board
Thorsten

[newpuppet]

Thanks very much for your answer. I had no error while compiling the PDF, anyway i attached here my *.log file.

If you have any suggestion it will be awesome!

[localghost]

[…] I had no error while compiling the PDF, […]

I did not talk of errors, but of warnings. And the log file is quite clear in this regard.

Code: Select all

Overfull \hbox (98.46169pt too wide) in paragraph at lines 13--14

The graphicx manual lists options how to determine the size of an included graphic.

[newpuppet]

thank you very much problem solved!
