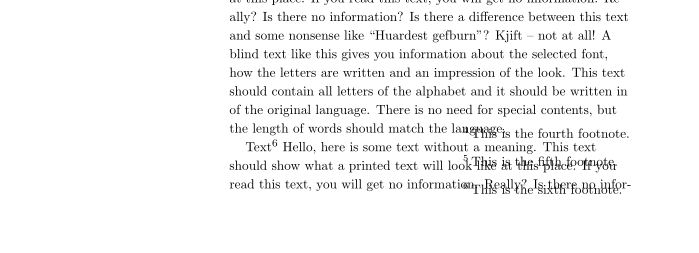

The below codes (which help to put the footnotes at the bottom of margin) can work well in oneside article, but not in twoside book. There would be overlapping of text and footnotes in each even page because the footnotes appear on the right side instead of at the margin of each even page.
I read them word by word, but cannot figure out how to fix it. Thanks for any suggestions.
Code: Select all
\documentclass[a4paper,twoside,symmetric,nols]{tufte-book}
\usepackage[american]{babel}
\usepackage{blindtext}
%% footnote format
\usepackage{forarray,etoolbox,xifthen,,graphicx,picture,calc,atbegshi,lipsum,color}
\newlength{\vincrement}
\newlength{\fmvorigin}
\newlength{\fmhorigin}
\newlength{\fmvoffset}
\newlength{\nextfmvoffset}
\newlength{\fmvskip}
\setlength{\fmvorigin}{-1in-\voffset-\topmargin-\headheight-\headsep-\textheight}
\makeatletter
\ifthenelse{\isundefined{\Gm@lmargin}}%
{\setlength{\fmhorigin}{1in+\hoffset+\oddsidemargin+\textwidth+\marginparsep}}%
{\setlength{\fmhorigin}{\Gm@lmargin+\textwidth+\marginparsep}}
\makeatother
\setlength{\fmvoffset}{0pt}
\setlength{\fmvskip}{3ex}
\newlength{\tmvorigin}
\newlength{\tmhorigin}
\newlength{\tmvoffset}
\newlength{\nexttmvoffset}
\newlength{\tmvskip}
\newlength{\maxtmnheight}
\setlength{\tmvorigin}{-1in-\voffset-\topmargin-\headheight-\headsep-\baselineskip}
\setlength{\tmhorigin}{\fmhorigin}
\setlength{\tmvoffset}{0pt}
\setlength{\tmvskip}{6ex}
\newcounter{fmn}
\newcounter{tmn}
\newboolean{marginisfull}
\newcommand{\fmnbuffer}{}
\newcommand{\currentfmnqueue}{}
\newcommand{\nextfmnqueue}{}
\newcommand{\tmnbuffer}{}
\newcommand{\currenttmnqueue}{}
\newcommand{\nexttmnqueue}{}
\newcommand{\append}[2]{%
\ifdefempty{#1}{}{\eappto{#1}{,}}%
\eappto{#1}{#2}%
}
\newcommand{\prepend}[2]{%
\ifdefempty{#1}{}{\epreto{#1}{,}}%
\epreto{#1}{#2}%
}
\newcommand{\footmarginnote}[1]{%
\addtocounter{fmn}{1}%
\expandafter\newsavebox\csname fmnbox\roman{fmn}\endcsname%
\expandafter\savebox\csname fmnbox\roman{fmn}\endcsname{\parbox[b]{\marginparwidth}{#1}}%
\append{\currentfmnqueue}{\roman{fmn}}%
}
\newcommand{\topmarginnote}[1]{%
\addtocounter{tmn}{1}%
\expandafter\newsavebox\csname tmnbox\roman{tmn}\endcsname%
\expandafter\savebox\csname tmnbox\roman{tmn}\endcsname{\parbox[t]{\marginparwidth}{\vskip-0.75\baselineskip#1}}%
\append{\currenttmnqueue}{\roman{tmn}}%
}
\newcommand{\printfmn}{%
\setlength{\fmvoffset}{0pt}%
\setboolean{marginisfull}{false}%
\ifdefempty{\currentfmnqueue}{}{%
\gdef\nextfmnqueue{}%
\gdef\fmnbuffer{}%
\ForEachX{,}{%
\ifthenelse{\boolean{marginisfull}}%
{\append{\nextfmnqueue}{\thislevelitem}}%
{%
\setlength{\vincrement}%
{\fmvskip+\expandafter\ht\csname fmnbox\thislevelitem\endcsname+\dp\csname fmnbox\thislevelitem\endcsname}%
\setlength{\nextfmvoffset}{\fmvoffset+\vincrement}%
\ifthenelse{\lengthtest{\nextfmvoffset>\textheight}}{%
\setboolean{marginisfull}{true}%
\append{\nextfmnqueue}{\thislevelitem}%
}{%
\prepend{\fmnbuffer}{\thislevelitem}%
\addtolength{\fmvoffset}{\vincrement}%
}%
}%
}%
{\currentfmnqueue}%
\setlength{\fmvoffset}{0pt}%
\ForEachX{,}{%
\put(\fmhorigin,\fmvorigin+\fmvoffset){\expandafter\usebox\csname fmnbox\thislevelitem\endcsname}%
\setlength{\vincrement}%
{\fmvskip+\expandafter\ht\csname fmnbox\thislevelitem\endcsname+\dp\csname fmnbox\thislevelitem\endcsname}%
\addtolength{\fmvoffset}{\vincrement}%
}%
{\fmnbuffer}%
\global\let\currentfmnqueue\nextfmnqueue%
}%
}
\newcommand{\printtmn}{%
\setlength{\maxtmnheight}{\textheight-\fmvoffset}%
\setlength{\tmvoffset}{0pt}%
\setboolean{marginisfull}{false}%
\ifdefempty{\currenttmnqueue}{}{%
\gdef\nexttmnqueue{}%
\gdef\tmnbuffer{}%
\ForEachX{,}{%
\ifthenelse{\boolean{marginisfull}}%
{\append{\nexttmnqueue}{\thislevelitem}}%
{%
\setlength{\vincrement}%
{\tmvskip+\expandafter\ht\csname tmnbox\thislevelitem\endcsname+\dp\csname tmnbox\thislevelitem\endcsname}%
\setlength{\nexttmvoffset}{\tmvoffset+\vincrement}%
\ifthenelse{\lengthtest{\nexttmvoffset>\maxtmnheight}}{%
\setboolean{marginisfull}{true}%
\append{\nexttmnqueue}{\thislevelitem}%
}{%
\append{\tmnbuffer}{\thislevelitem}%
\addtolength{\tmvoffset}{\vincrement}%
}%
}%
}%
{\currenttmnqueue}%
\setlength{\tmvoffset}{0pt}%
\ifdefempty{\tmnbuffer}{}{%
\ForEachX{,}{%
\put(\tmhorigin,\tmvorigin-\tmvoffset){\expandafter\usebox\csname tmnbox\thislevelitem\endcsname}%
\setlength{\vincrement}%
{\tmvskip+\expandafter\ht\csname tmnbox\thislevelitem\endcsname+\dp\csname tmnbox\thislevelitem\endcsname}%
\addtolength{\tmvoffset}{\vincrement}%
}%
{\tmnbuffer}%
}%
\global\let\currenttmnqueue\nexttmnqueue%
}%
}
\AtBeginShipout{\AtBeginShipoutUpperLeft{\printfmn\printtmn}}
\makeatletter
\renewcommand{\footnote}[1]{\footnotemark\footmarginnote{\textsuperscript{\@thefnmark}\,#1}}
\makeatother
\begin{document}
Text\footnote{This is the first footnote.}
\blindtext
\blindtext
Text\footnote{This is the second and somewhat longer footnote.}
\blindtext
\blindtext
Text\footnote{This is the third footnote.}
\blindtext
\blindtext
Text\footnote{This is the fourth footnote.}
\blindtext
\blindtext
Text\footnote{This is the fifth footnote.}
\blindtext
\blindtext
Text\footnote{This is the sixth footnote.}
\blindtext
\end{document} - problem.JPG (39.57 KiB) Viewed 3480 times
