Dear experts,

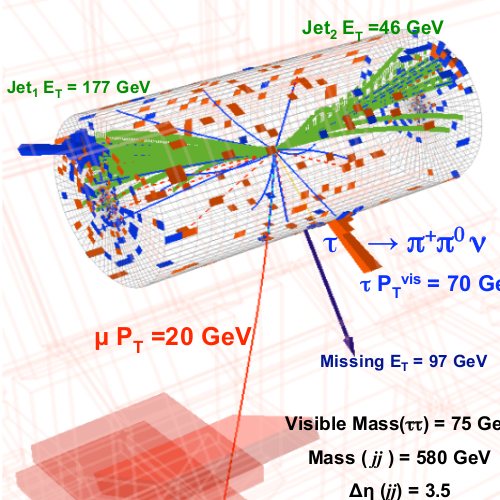

I want to draw a similar picture as the attached one in beamer. More specific, how to add Texts and Arrows with user-controlled positions and directions.
Best Regards,
Jike
Graphics, Figures & Tables ⇒ Text and Arrows pointing to a Picture
Text and Arrows pointing to a Picture
- Attachments
-
- ex.png (316.73 KiB) Viewed 2215 times
Learn LaTeX easily with newest books:
The LaTeX Beginner's Guide: 2nd edition and perfect for students writing a thesis
The LaTeX Cookbook: 2nd edition full of practical examples for mathematics, physics, chemistry, and more
LaTeX Graphics with TikZ: the first book about TikZ for perfect drawings in your LaTeX thesis
-
Stefan Kottwitz
- Site Admin
- Posts: 10348
- Joined: Mon Mar 10, 2008 9:44 pm
Text and Arrows pointing to a Picture
Hi Jike,
there are tools like the overpic package. I would choose
TikZ for that. Besides that it is capable of producing such pictures, it can be used to draw text, symbols and arrows over other pictures.
Once you have a reference point, you could use coordinates for drawing as overlay.
Stefan
there are tools like the overpic package. I would choose
TikZ for that. Besides that it is capable of producing such pictures, it can be used to draw text, symbols and arrows over other pictures.Once you have a reference point, you could use coordinates for drawing as overlay.
Stefan
