General ⇒ How do I Label a table and use ref to show Table6.1

[akira32]

How do I Label a table and use ref to show Table6.1,like figure mechanism:
I want to type some words in the bottom of table like figure.

Code: Select all

\begin{figure}[H]
\centerline{\epsfig{file=eps/6-diff_tech_1024x512_sv_with_UI.eps,width=1.25\linewidth}}
\caption{\small Shadow Volumes, FPS=8.69}
\label{fig:6-diff_tech_1024x512_sv_with_UI}
\end{figure}

In Figure \ref{fig:6-diff_tech_1024x512_CSM_with_UI} and Figure \ref{fig:6-diff_tech_1024x512_ASM_with_UI},

Code: Select all

\begin{center}
  \begin{tabular}{ l | c || r | }
    \hline
    1 & 2 & 3 \\ \hline
    4 & 5 & 6 \\ \hline
    7 & 8 & 9 \\
    \hline
  \end{tabular}
\end{center}

[Stefan Kottwitz]

Hi akira32,

use the table environment similar to figure or \captionof with the caption package. Have a look at this example:

Code: Select all

\documentclass[a4paper,10pt]{book}
\usepackage{caption}
\begin{document}
\chapter{One}
\section{one}
\begin{center}
  \begin{tabular}{ l | c || r | }
    \hline
    1 & 2 & 3 \\ \hline
    4 & 5 & 6 \\ \hline
    7 & 8 & 9 \\
    \hline
  \end{tabular}
  \captionof{table}{test table}\label{tab:1}
\end{center}
See table \ref{tab:1}.
\end{document}

Stefan

[akira32]

I add the line of \usepackage{caption} to preamble.
When I build, MiTex seems to download some thing.
But I compiled agagin, it appear two errors and one warning as the picture I attached.
Could you tell how to solve it.

[Stefan Kottwitz]

caption is a very good package, but you can fix this problem by another very small package. Try

Code: Select all

\usepackage{capt-of}

instead of \usepackage{caption}.

In order to get the caption package working I would have to see your complete preamble.

Stefan

[akira32]

caption is a very good package, but you can fix this problem by another very small package. Try

Code: Select all

\usepackage{capt-of}

instead of \usepackage{caption}.

In order to get the caption package working I would have to see your complete preamble.

Stefan

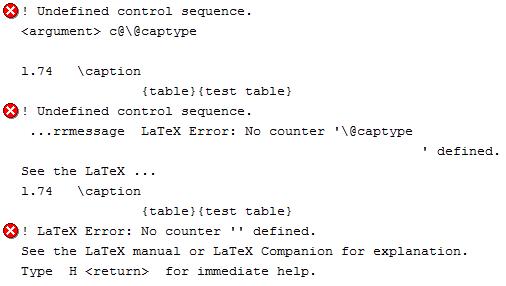

It appear many error messages.

[Stefan Kottwitz]

Also with capt-of use \captionof:

Code: Select all

\captionof{table}{test table}

\caption only for standard figure or table environments, \captionof for the tabular inside center or similar.

Stefan

[akira32]

Also with capt-of use \captionof:

Code: Select all

\captionof{table}{test table}

\caption only for standard figure or table environments, \captionof for the tabular inside center or similar.

Stefan

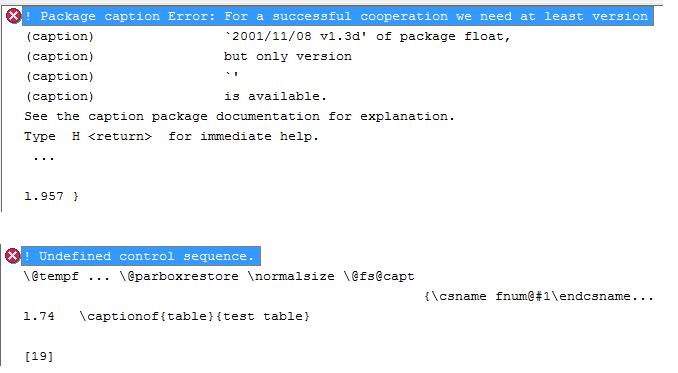

The errors still appear.

[Stefan Kottwitz]

Hi akira32,

The errors still appear.

it's not possible, if you replaced \caption by \captionof then that errors cannot appear again, because those errors concerned caption but not captionof. Of course we want to help you, just show us the new error messages (or the logfile) and perhaps the code that causes the errors.

Stefan

[akira32]

I attched the my preamble and log.

[Stefan Kottwitz]

Hi,

it seems to me like you just compiled one chapter (results.tex), not the complete document. A single chapter cannot be compiled. results.log shows that \begin{document} is missing etc. Compile the complete document and send that log.

Regarding \caption and \captionof I still recommend my message above of Sun Jul 06, 2008 2:18 pm.

Stefan
