Graphics, Figures & Tables ⇒ How to add a shadow under a picture ?

[Cham]

How can I modify the following compilable code to add a gray drop shadow to the picture (including its frame) ?
I really don't understand the TikZ package. Is there a simple way to add the shadow ?

Code: Select all

\documentclass[12pt,letterpaper,twoside]{book}
\usepackage[T1]{fontenc}
\usepackage[utf8]{inputenc}
\usepackage[french]{babel}
\usepackage{graphicx}
\usepackage[dvipsnames]{xcolor}
\usepackage{here}
\definecolor{background}{RGB}{225,225,220}
\pagecolor{background}
\fboxsep=2mm

\begin{document}
bla bla bla
\medskip
\medskip
	\begin{figure}[H]
		\centering
		\fcolorbox{black}{white}{\includegraphics[height=8cm]{picture.jpg}}
		\caption{A caption.}
	\end{figure}
\end{document}

[Stefan Kottwitz]

Hi Cham,

you could use \shadowbox of the fancybox package.

Since you mentioned TikZ, that's not hard. Add to your preamble

Code: Select all

\usepackage{tikz}
\usetikzlibrary{shadows}

and in your code you could use, for example, \node [drop shadow] :

Code: Select all

\begin{figure}[H]
\centering
  \tikz\node [drop shadow]
    {\fcolorbox{black}{white}{\includegraphics[height=8cm]{picture.png}}};
  \caption{A caption.}
\end{figure}

Stefan

[Cham]

Thanks ! It works !

But how can I make the shadow fuzzy ?

Also, the drop shadow isn't properly placed. I tried to play with the shadow xshift and shadow yshift options, but it's not sufficient, apparently.

[Cham]

Here's a compilable code. The drop shadow isn't right. How can I improve it ?

The shadow thickness is too strong. I don't know how to change it.
And is it possible to make the shadow fuzzy (blurry) ?

The shadow should be very subtle, with the same thickness at the right side and below the picture's frame. Currently, it's very hard to adjust the shadow. There must be a simpler way to do this.

Code: Select all

\documentclass[12pt,letterpaper,twoside]{book}
\usepackage[T1]{fontenc}
\usepackage[utf8]{inputenc}
\usepackage[french]{babel}
\usepackage{graphicx}
\usepackage[dvipsnames]{xcolor}
\usepackage{here}
\usepackage{tikz}
\usetikzlibrary{shadows}
\definecolor{background}{RGB}{225,225,220}
\pagecolor{background}
\fboxsep=2mm

\begin{document}
	\begin{figure}[H]
		\centering
		\tikz\node[drop shadow={
			top color=gray,
			bottom color=white,
			%fill=gray,
			opacity=0.2,
			shadow xshift=2pt,
			shadow yshift=-2pt
			}]
		{\fcolorbox{black}{white}{\includegraphics[height=8cm]{picture.jpg}}};
		\caption{A caption.}
	\end{figure}
\end{document}

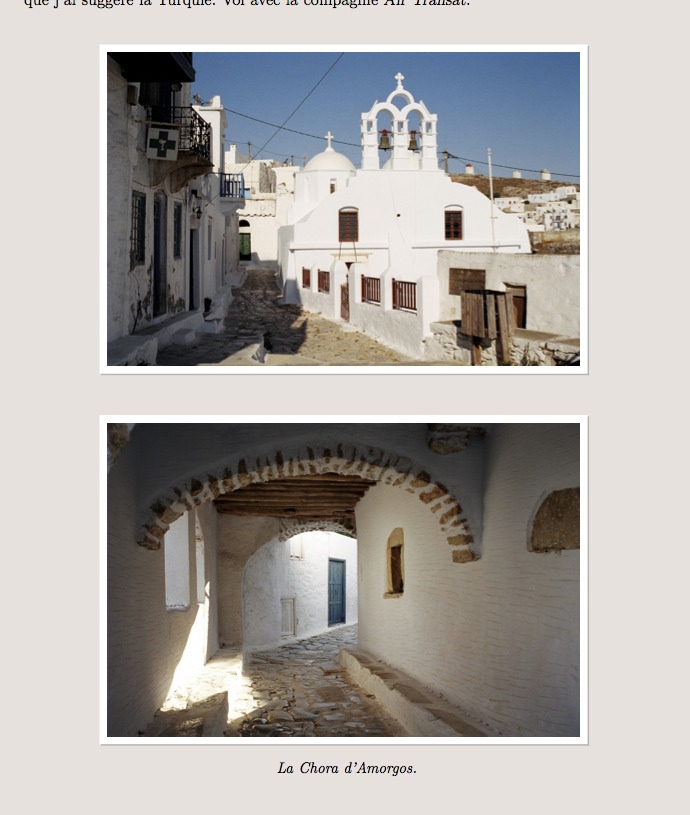

EDIT : I'm trying to do this effect :


However, the shadow isn't right yet. The thickness should be exactly the same at the right and below the frame, with the same offset on the lower-left and upper-right corners. How ?

[Stefan Kottwitz]

For making the shadow thinner, you could use the shadow scale option and possibly remove the x and y shifting, such as

Code: Select all

\tikz\node[drop shadow={
    shadow scale=0.98,
    top color=gray,
    opacity=0.5
  }]
  {\fcolorbox{black}{white}{\includegraphics[height=8cm]{picture.png}}};

Stefan

[Cham]

Well then, the offset isn't right. It's still slightly larger on the right side.

Take note that the picture isn't square. It's of rectangular shape, so I suspect it may be related to that.

[Cham]

Is there any other way to drop a shadow under a picture, in LaTeX ? I think that the TikZ way is very cumbersome. Is there a way to add a shadow to a picture (including its frame, as defined in my example above), using another package, and that let you use a color/transparency as an option ?

[Stefan Kottwitz]

LaTeX is mainly for typesetting text. I guess you look for a graphics software. A graphics package such as TikZ would be an option though, which is capable of drawing even faded shadows, but now it's out of the question. Try Inkscape for example.

Stefan

[Cham]

I've found a good combination with fancybox, without TikZ. However, is there a way to add some transparency or color to the fancybox shadow ? Currently, the black lines are too heavy :

Code: Select all

\documentclass[12pt,letterpaper,twoside]{book}
\usepackage[T1]{fontenc}
\usepackage[utf8]{inputenc}
\usepackage[french]{babel}
\usepackage{graphicx}
\usepackage[dvipsnames]{xcolor}
\usepackage{here}
\usepackage{fancybox}
\definecolor{background}{RGB}{230,225,220}
\pagecolor{background}

\begin{document}
	\begin{figure}[H]
		\centering
		\shadowsize=1pt
		\fboxrule=0pt
		\fboxsep=0pt
		\shadowbox{\fboxsep=6pt\fcolorbox{white}{white}{\includegraphics[height=8cm]{Figures/picture.jpg}}}
		\caption{Another caption.}
	\end{figure}
\end{document}

[Cham]

Hmmm, maybe this is an hack ?

I've found a way to change the fancybox color, but I need to add another color directive since it's also changing the caption's text color :

Code: Select all

	\begin{figure}[H]
		\centering
		\shadowsize=1pt
		\fboxrule=0pt
		\fboxsep=0pt
		\color{gray}
		\shadowbox{\fboxsep=6pt\fcolorbox{white}{white}{\includegraphics[height=8cm]{picture.jpg}}}
		\color{black}
		\caption{Another caption.}
	\end{figure}

Is there a better way to achieve this ?

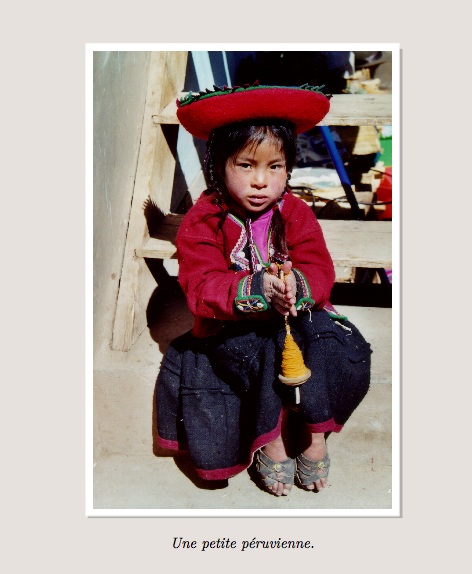

Here's a preview of the final effect, which I think is VERY nice !
