General

nifty · Post by **nifty** » Mon Oct 10, 2011 3:36 pm

I have a document from the author and he is using the listings package. He has this code:

\lstinputlisting[language=HTML]{scr/html/roll.html}

roll.html has this:

Code: Select all

<!doctype html>
<html>
  <head>
    <meta charset="UTF-8"/>
    <title>JavaScript Temperature Converter</title>
  </head>
  <body>
    <h1>Temperature Conversion</h1>
    <p>
      <input type="text" id="temperature" />
      <input type="button" id="f_to_c" value="F to C" />
      <input type="button" id="c_to_f" value="C to F" />
    </p>
    <p id="result"></p>
    <script src="temperature.js"></script>
  </body>
</html>

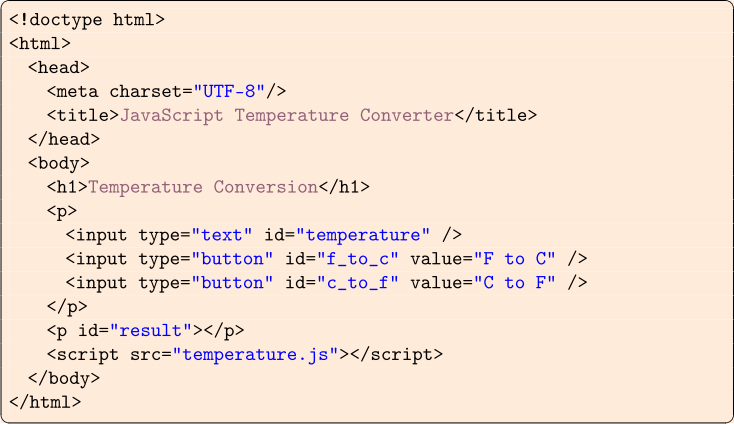

His PDF looks like this:

: author.png (149.26 KiB) Viewed 8571 times

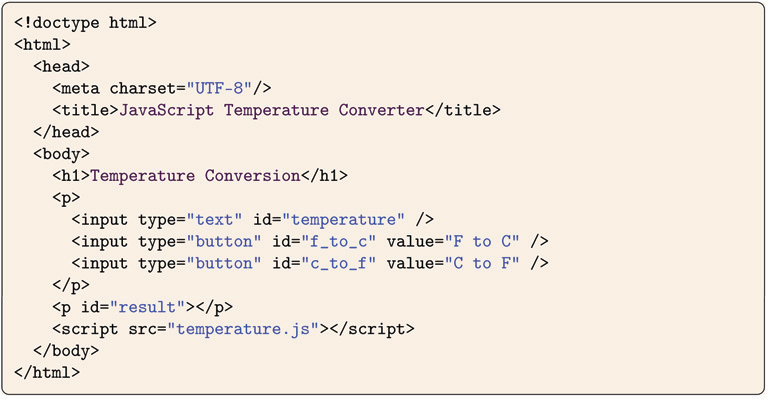

My file looks like this:

: myfile.png (146.58 KiB) Viewed 8571 times

Notice the coloring of "charset," "id," and the words between <title> and </title>. Any ideas on why the difference in color? He is also using a lot of Java code and that coloring seems to be correct. It is just when he uses the language=html.

NEW: TikZ book now 40% off at Amazon.com for a short time.

And: Currently, Packt sells ebooks for $4.99 each if you buy 5 of their over 1000 ebooks. If you choose only a single one, $9.99. How about combining 3 LaTeX books with Python, gnuplot, mathplotlib, Matlab, ChatGPT or other AI books? Epub and PDF. Bundle (3 books, add more for higher discount): https://packt.link/MDH5p

Post by **localghost** » Mon Oct 10, 2011 4:57 pm

nifty wrote:I have a document from the author and he is using the listings package. […]

Can't the author just leave the concerned piece of code to you so that you can reproduce the appearance? Nevertheless, a minimal example that shows your recent efforts would be good to get closer to a solution.

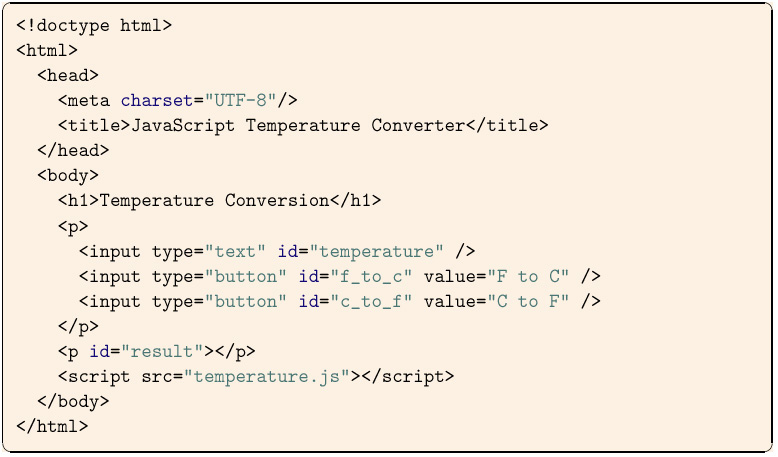

Anyway, you have to set the colors for identifiers and strings explicitly. From what I can see on the pictures you attached, I tried to reproduce the desired output.

Code: Select all

\documentclass[11pt]{article}
\usepackage[T1]{fontenc}
\usepackage{listings}
\usepackage[dvipsnames]{xcolor}

\lstset{%
  basicstyle=\small\ttfamily,
  breaklines=true,
  columns=fullflexible,
  frame=single,
  frameround=tttt,
  showstringspaces=false
}

\begin{document}
  \lstinputlisting[%
    language=HTML,
    backgroundcolor=\color{Apricot!25},
    identifierstyle=\color{magenta!50!black},
    stringstyle=\color{blue}
  ]{scr/html/roll.html}
\end{document}

It goes without saying that this is only a basic example which needs some adjustments, especially regarding the colors. Since you didn't provide any code, I can't explain why the pieces of text you mentioned are colored in your example.

And next time please upload attachments to the forum sever. External links can get lost with time and make a problem incomprehensible later. If necessary, convert and scale images to match the 256kb limit for single attachments.

Thorsten

johnkimber · Post by **johnkimber** » Thu Apr 25, 2019 8:16 am

Check with this..color codes
