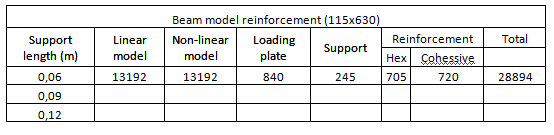

I am new to Latex and having some problems making tables. I would like my table to look like the attached figure but the I don't get the multicolumn working at the headline 'Reinforcement'. Do anyone have suggestions?

Thanks in advice, best regards jimp.

[localghost]

The multirow package allows to typeset entries spanning multiple rows (who knew?). For further details consult the package manual. Open a command line for instant access.

Code: Select all

texdoc multirow

For entries spanning multiple columns use the \multicolumn command.


Best regards and welcome to the board
Thorsten

[Stefan Kottwitz]

Hi Jimp,

welcome to the board!

Have a look at Creating tables with LaTeX, there are examples for multicolumn and multirow tables together with an explanation of \multicolumn and \multirow.

Stefan

[jimp]

Thanks for the tip but I'm in a bit hurry due a deadline on Friday and my !"#! mentor required my work done in LateX this monday. So I am going to ask if Im on the right way with this code =)

Code: Select all

\begin{table*}[h!]
	\centering
	\begin{tabular}{| c | c | c | c | c | c | c |}
	\hline
	\multicolumn{7}{| c |}{Reinforced beams} \\
	\hline
	Support length	& Linear model 	& Non linear model 	& Loading plate 	& Support 	& \multicolumn{2}{| c |}{Reinforcement}	& Total \\
	\hline
	1			& 2			& 3			& 4			& 5		& 6	& 7						& 8 \\
	\hline
	\end{tabular}
	\caption{Number of elements in each part of the reinforced beams.}
	\label{table78}
\end{table*}

[jimp]

Never mind! I managed to do it!

Thanks for the tip but I'm in a bit hurry due a deadline on Friday and my !"#! mentor required my work done in LateX this monday. So I am going to ask if Im on the right way with this code =)

Code: Select all

\begin{table*}[h!]
	\centering
	\begin{tabular}{| c | c | c | c | c | c | c |}
	\hline
	\multicolumn{7}{| c |}{Reinforced beams} \\
	\hline
	Support length	& Linear model 	& Non linear model 	& Loading plate 	& Support 	& \multicolumn{2}{| c |}{Reinforcement}	& Total \\
	\hline
	1			& 2			& 3			& 4			& 5		& 6	& 7						& 8 \\
	\hline
	\end{tabular}
	\caption{Number of elements in each part of the reinforced beams.}
	\label{table78}
\end{table*}

[localghost]

I would do it slightly different and devide some cells in the table header.

Code: Select all

\documentclass[11pt]{article}
\usepackage[T1]{fontenc}
\usepackage[tableposition=top]{caption}
\usepackage{multirow}

\begin{document}
  \begin{table}[!ht]
    \caption{Beam model reinforcement (115x630)}\label{tab:bemore}
    \centering
    \footnotesize
    \begin{tabular}{|*8{c|}}\hline
      Support & Linear & Non-linear & Loading & \multirow{2}{*}{Support} & \multicolumn{2}{c|}{Reinforcement} & Total \\\cline{6-8}
      length (m) & Model & Model & plate & & Hex & Cohessive & \\\hline
      0,06 & 13192 & 13192 & 840 & 245 & 750 & 720 & 28894 \\\hline
      0,09 & & & & & & & \\\hline
      0,12 & & & & & & & \\\hline
    \end{tabular}
  \end{table}
\end{document}

[Stefan Kottwitz]

That's a start! Note , you have got 8 columns. So in the column definition (and in the first multicolumn) you need one more c cell to make it work:

Code: Select all

\begin{table*}[h!]
   \centering
   \begin{tabular}{| c | c | c | c | c | c | c | c |}
   \hline
   \multicolumn{8}{| c |}{Reinforced beams} \\
   \hline
   Support length   & Linear model    & Non linear model    & Loading plate    & Support    & \multicolumn{2}{c |}{Reinforcement}   & Total \\
   \hline
   1         & 2         & 3         & 4         & 5      & 6   & 7                  & 8 \\
   \hline
   \end{tabular}
   \caption{Number of elements in each part of the reinforced beams.}
   \label{table78}
\end{table*}

Stefan

[jimp]

Thank you, Stefan_K. I noticed that just some time after my post.
