Graphics, Figures & Tables ⇒ Picture Number and Title

[Kaspars]

Hello,

Here is my code:

Code: Select all

\documentclass[12pt,a4paper,fleqn]{article}

\usepackage{fontspec}
\usepackage{xunicode}
\usepackage{xltxtra}
\usepackage{polyglossia}
\usepackage{appendix}
\setotherlanguages{english}
\usepackage{graphicx}
\usepackage{amsmath}
\usepackage{titlesec,titletoc}

\begin{document}

\section{first section}

\begin{figure}[!h]
\includegraphics[width=1.00\textwidth]{pic}\hfill
\caption{picture descriprion}
\end{figure}

\end{document}

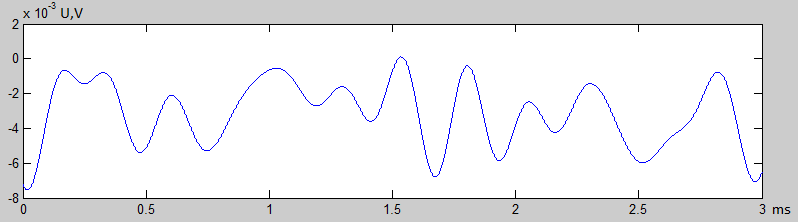

In attachment you will find a picture.

If you compile, you can see that pictures number and name is writed like this:
Figure 1: Picture description

What I must do, so the title would look like this:
1. Figure. Picture description

Thanks for help

[sommerfee]

This could be done with the/my caption package:

Code: Select all

\usepackage{caption}
\DeclareCaptionLabelFormat{myformat}{#2.~#1.}
\captionsetup{labelformat=myformat,labelseparator=space}

HTH,
Axel

[Kaspars]

This could be done with the/my caption package:

Code: Select all

\usepackage{caption}
\DeclareCaptionLabelFormat{myformat}{#2.~#1.}
\captionsetup{labelformat=myformat,labelseparator=space}

HTH,
Axel

It works, thanks a lot
