Page Layout ⇒ Textbox within article

[Dhondtie]

Hey,

I'm not completely new to LaTeX but I'm not used to work with special layout schemes, so that's why I thought it was a good idea to post my question here.

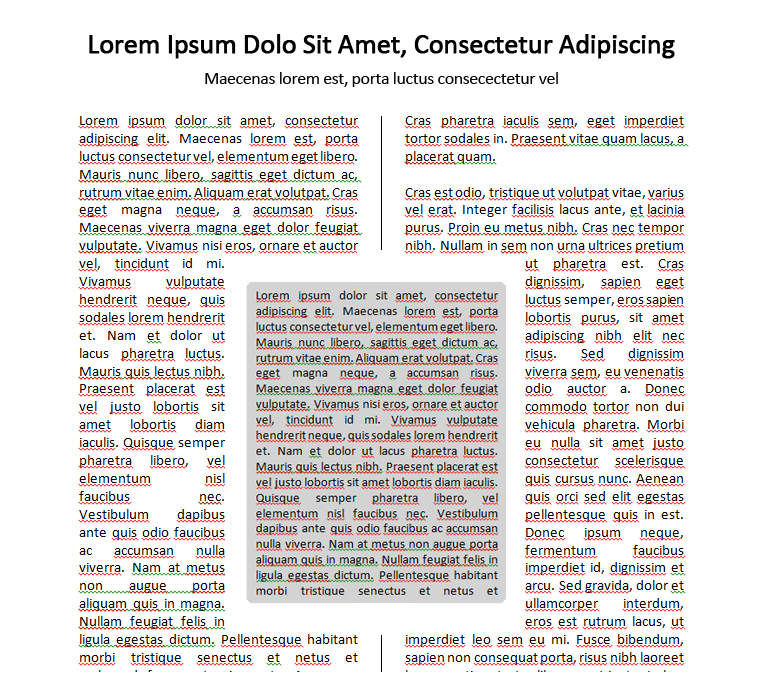

Momently I'm trying to create an article witch has a layout as shown in this picture:


But I'm kind off clueless on how to achieve something like that.
Anyone who can push me in the right direction?

Many thanks,
Dhondtie

[gmedina]

I can't see the picture uploaded to ImageShack; please upload the picture to the board server.

[Dhondtie]

I can't see the picture uploaded to ImageShack; please upload the picture to the board server.

Sorry.
Now it should be attached to my post.

[gmedina]

One possible solution would be to use the wrapfig package (documentation in the file wrapfig.sty; in your case the file multiple-span.txt will give explain you the procedure). Working in the standard twocolumn mode is easy, but you won't have the vertical line separating the two columns:

Code: Select all

\documentclass[twocolumn]{article}
\usepackage{calc}
\usepackage{wrapfig}
\usepackage{graphicx}
\usepackage{lipsum}% just to generate filler text for the example

\begin{document}
text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text
\begin{wrapfigure}[25]{r}[.5\width+.5\columnsep]{6cm}
\parbox{6cm}{\lipsum[1]}
\end{wrapfigure}
text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text

text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text

text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text \begin{wrapfigure}[25]{l}[.5\width+.5\columnsep]{6cm}
\vfill
\end{wrapfigure}
text text text text text text text text text text text text text text text text text text text text text text text text text text text text text  text text text text text text text text text text text text text text text text text text text text text text text text text  text text text text text text text text text text text text text text text text text text text text text text text text text

text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text  text text text text text text text text text text text text text text text text text text text text text text text text text  text text text text text text text text text text text text text text text text text text text text text text text text text

text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text text  text text text text text text text text text text text text text text text text text text text text text text text text text  text text text text text text text text text text text text text text text text text text text text text text text text text
\end{document}

Edit: I haven't found a solution using the column separator.

[Dhondtie]

Thanks a lot!
Currently this is more then sufficient.
I'll do this first and try to have a coloured background later on.

[localghost]

[…] Currently this is more then sufficient. […]

Then please mark the topic (not the last post) accordingly as written in Section 3 of the Board Rules (to be read before posting).

Some time ago I answered a very similar question [1]. Unfortunately the initiator of that topic never gave feedback. So we don't know if the provided solution worked.

[1] View topic: Pull quotes, wrapfig, newenvironment not working


Best regards and welcome to the board
Thorsten
