General ⇒ Using verbatim inside tabular

[snpagliarini]

Hey guys,

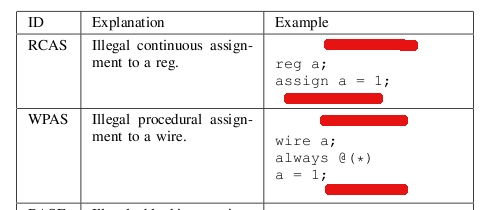

I am trying to use verbatim inside a tabular but I am not getting the look I want. I have attached a screen-shot of the issue. It seems as verbatim is always placing blank lines before and after.

My latex source looks like this:

Code: Select all

\begin{table}
\renewcommand{\arraystretch}{1.3}
\caption{Linting checks}
\label{tab_lint}
\begin{center}
\begin{tabular}{|l|p{3cm}|p{3.5cm}|}
\hline
ID & Explanation & Example \\
\hline
RCAS & Illegal continuous assignment to a reg. &\begin{alltt}reg a;
assign a = 1;\end{alltt} \\
\hline
WPAS & Illegal procedural assignment to a wire. & \begin{verbatim}wire a;
always @(*)
a = 1;\end{verbatim}

Any ideas how to get rid of those lines?

[snpagliarini]

I replaced the verbatim environment with the \verb one. The problem is that verbatim creates a paragraph.

[localghost]

If the problem is solved, please be so kind and mark the topic accordingly as clearly written in the Board Rules (to be read before posting). Otherwise tell us what is missing.

Please always post a full but minimal example. Otherwise it becomes difficult to give specific help. You can also try to typeset the right column in a typewriter font as shown below.

Code: Select all

\documentclass[11pt,a4paper,english]{article}
\usepackage[T1]{fontenc}
\usepackage[utf8]{inputenc}
\usepackage{babel}
\usepackage[font=small,labelfont=bf,tableposition=top]{caption}
\usepackage{array}

\begin{document}
  \begin{table}[!ht]
    \renewcommand{\arraystretch}{1.3}
    \centering
    \caption{Linting checks}\label{tab_lint}
    \begin{tabular}{|l|p{3cm}|>{\ttfamily\arraybackslash}p{3.5cm}|}\hline
      ID & Explanation & \textnormal{Example} \\ \hline
      RCAS & Illegal continuous assignment to a reg. & reg a;\newline assign a = 1; \\ \hline
      WPAS & Illegal procedural assignment to a wire. & wire a;\newline always @(*)\newline a = 1; \\ \hline
    \end{tabular}
  \end{table}
\end{document}

Best regards and welcome to the board
Thorsten
