Graphics, Figures & Tables ⇒ Hyperlinks and psfrag

[jbroida]

I'm not sure how to use both psfrag and create hyperlinks in a pdf output. Using TexShop I have the Typeset option at "TeX and DVI" and psfrag works fine. But to use package hyperref I have to set the Typeset option to "Pdftex" which gives me the proper hyperlink, but psfrag doesn't work. How can I get both working?

[Stefan Kottwitz]

Hi!

hyperref works with LaTeX in DVI mode too and is able to generate hyperlinks in a PDF converted using dvips, for example.
Perhaps post some details, such as your code and a PS file.

Stefan

[jbroida]

Stefan, if you give me an email address I'll send you the codes I use to get either psfrag to work or the hyperlink to work, the xfig generated eps graphic that requires psfrag, as well as the outputs I get.

[jbroida]

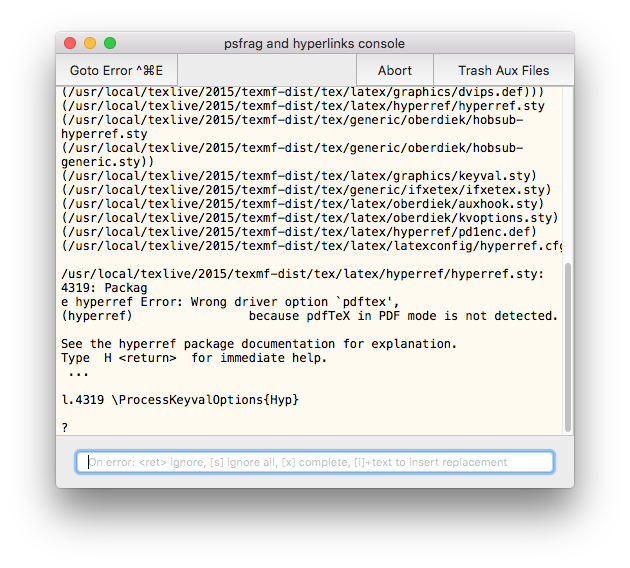

And here is the error message I get when I try to typeset everything with the Typeset option set to "TeX and DVI."

[Johannes_B]

Do not load hyperref with the pdftex option.
That mistake is often seen with old templates that never get updated.
