Hi,
I would like to insert a figure in Lyx just after a paragraph of text. I follow the procedure but the figure goes always on the top of the page...
Thank you for your help !
LyX ⇒ Figures in Lyx
Learn LaTeX easily with newest books:
The LaTeX Beginner's Guide: 2nd edition and perfect for students writing a thesis
The LaTeX Cookbook: 2nd edition full of practical examples for mathematics, physics, chemistry, and more
LaTeX Graphics with TikZ: the first book about TikZ for perfect drawings in your LaTeX thesis
-
scottkosty
- Site Moderator
- Posts: 542
- Joined: Sat Sep 01, 2012 6:38 am
Figures in Lyx
Can you please show us exactly what you have done? Either describe the exact steps (e.g. how you insert a figure, which options you choose, etc.). Or give a MWE.
Note that a .lyx file is just a text file so you can open in a text editor and paste a MWE as code here.
For more information, see https://wiki.lyx.org/FAQ/MinimalExample
Note that a .lyx file is just a text file so you can open in a text editor and paste a MWE as code here.
For more information, see https://wiki.lyx.org/FAQ/MinimalExample
-
Stefan Kottwitz
- Site Admin
- Posts: 10397
- Joined: Mon Mar 10, 2008 9:44 pm
Figures in Lyx
Hi Kinou,
welcome to the forum!

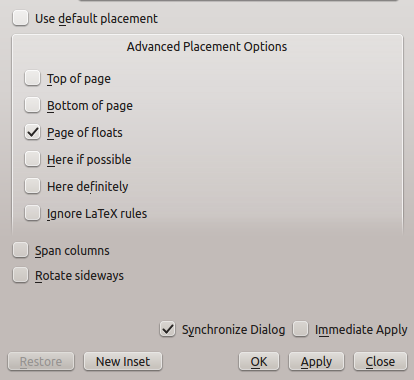

Check the float placement options. Perhaps mark all places as allowed here:
So top of page, bottom of page, here if possible, ignore LaTeX rules (relaxes positioning) - but don't check "Here definitely" (overriding automatic positioning can cause bad page breaks and undesired white space).
And ensure that the figure is not too big to fit on the page, so it goes on top of the next page.
Stefan
welcome to the forum!
Check the float placement options. Perhaps mark all places as allowed here:
- lyx-figure.png (30.49 KiB) Viewed 2662 times
And ensure that the figure is not too big to fit on the page, so it goes on top of the next page.
Stefan
