Document Classes ⇒ Problem with lstlistings (caption is overlaping other)

[one_eddie]

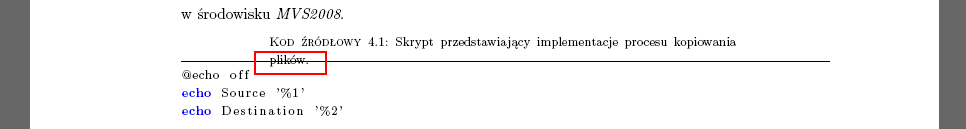

I'm using lstlistings. I've changed lstlistingname using \renewcommand{\lstlistingname}{Kod \'zr\'od\l{}owy} command. But there something wrong, please see the picture.

Does anyone know how can I fix it?

[localghost]

Providing a minimal working example (MWE) lets us play around with some code and would help us to see where there is something to correct.


Best regards and welcome to the board
Thorsten¹

[one_eddie]

I found the problem, its because I changed caption width. I don't know if this is a bug or just my lack of knowledge but I know it isn't what I need

Here's the MWE:

Code: Select all

\documentclass[a4paper]{memoir}

\usepackage{listings}
\lstset{frame=tb}

\changecaptionwidth
\captionwidth{.6\linewidth}
\captiontitlefont{\footnotesize}

\begin{document}
	\begin{lstlisting}[language=bash,caption=Text text text text text text text text text text text text text text text text text]
	@echo off
	echo Source '%1'
	echo Destination '%2'
	...
	\end{lstlisting}
\end{document}

[gmedina]

Hi one_eddie,

you already solved your problem, but you can keep the changes to the caption width and modify the separation between the caption and the code to avoid the overlapping, using belowcaptionskip. Take a look at the following example:

Code: Select all

\documentclass[a4paper]{memoir}

\usepackage{listings}
\lstset{frame=tb}

\changecaptionwidth
\captionwidth{.6\linewidth}
\captiontitlefont{\footnotesize}

\begin{document}
   \begin{lstlisting}[language=bash,caption=Text text text text text text text text text text text text text text text text text,belowcaptionskip=0.4cm]
   @echo off
   echo Source '%1'
   echo Destination '%2'
   ...
   \end{lstlisting}
\end{document}

[one_eddie]

So simple and its in the documentation. I probably missed it while reading docs

Thanks
