Arrow for multiple consecutive reactions

Post by Sonntag »

Hi!

There's a possibility to get an arrow like on the attached graphic?

Sonntag
Attachments

Recommended reading 2024:

LaTeXguide.org • LaTeX-Cookbook.net • TikZ.org

NEW: TikZ book now 40% off at Amazon.com for a short time.

And: Currently, Packt sells ebooks for $4.99 each if you buy 5 of their over 1000 ebooks. If you choose only a single one, $9.99. How about combining 3 LaTeX books with Python, gnuplot, mathplotlib, Matlab, ChatGPT or other AI books? Epub and PDF. Bundle (3 books, add more for higher discount): https://packt.link/MDH5p

Johannes_B
Site Moderator
Posts: 4182
Joined: Thu Nov 01, 2012 4:08 pm

Re: Arrow for multiple consecutive reactions

Post by Johannes_B »

TikZ; used by chemmacros, chemexec and mhchem; has an own arrow-library. It is likely that this kind of arrow is included. Unfortunately, the documentation is quite big and intimidating and always slowing down my machine to an almost standstill.
The smart way: Calm down and take a deep breath, read posts and provided links attentively, try to understand and ask if necessary.
Sonntag
Posts: 13
Joined: Sun May 24, 2015 3:37 pm

Re: Arrow for multiple consecutive reactions

Post by Sonntag »

Thank you! Went through them but couldn't find any arrow like that yet.
User avatar
Johannes_B
Site Moderator
Posts: 4182
Joined: Thu Nov 01, 2012 4:08 pm

Re: Arrow for multiple consecutive reactions

Post by Johannes_B »

In your picture are two very simple arrows. Or are you referring to the unit of both as an arrow?

Can you give examples and references where this is used? If this is a sensible issue, i am sure Clemens will add this to chemformula.
The smart way: Calm down and take a deep breath, read posts and provided links attentively, try to understand and ask if necessary.
Sonntag
Posts: 13
Joined: Sun May 24, 2015 3:37 pm

Re: Arrow for multiple consecutive reactions

Post by Sonntag »

I refer to the unit.

It is an abbreviation that you use if you skip reaction steps to get to the written products (outgoing from the written educts.)
User avatar
Johannes_B
Site Moderator
Posts: 4182
Joined: Thu Nov 01, 2012 4:08 pm

Arrow for multiple consecutive reactions

Post by Johannes_B »

Please add some references where this is actually used. I am not a chemist, i have seen this here for the first time. In order to make a feature request, we need some backup.



Since my Tikz-foo is very very limited, i could only come up with the following.

Code: Select all

\listfiles
\documentclass{article}
\usepackage{chemmacros}
\ExplSyntaxOn
\NewChemArrow { =>>> }
{
	\draw[chemarrow,-cf]
	([yshift=.15ex]cf_arrow_start) -- ([yshift=.15ex]cf_arrow_end) ;
	\draw[chemarrow,-cf]
	([yshift=-.35ex,xshift=.7em]cf_arrow_start) -- ([yshift=-.35ex,xshift=.7em]cf_arrow_end) ;
}
\ExplSyntaxOff
\begin{document}
\begin{reaction}
	a =>>> D
\end{reaction}
\end{document}
The smart way: Calm down and take a deep breath, read posts and provided links attentively, try to understand and ask if necessary.
User avatar
cgnieder
Site Moderator
Posts: 2000
Joined: Sat Apr 16, 2011 7:27 pm

Arrow for multiple consecutive reactions

Post by cgnieder »

chemformula and its \NewChemArrow is the right choice here, IMHO. I am reluctant to add this arrow to chemformula but the command \NewChemArrow is provided for exactly such purposes.

There is no need for \ExplSyntaxOn in order to use it, by the way.

Personally I'd set the arrows a little bit closer to each other but that is probably a matter of personal taste…

Code: Select all

\documentclass{article}
\usepackage{chemformula}

\NewChemArrow{>>}{
  \draw[chemarrow,-cf]
    ([yshift=.2ex]cf_arrow_start) -- ([yshift=.2ex]cf_arrow_end) ;
  \draw[chemarrow,-cf,]
    ([yshift=-.2ex,xshift=.3em]cf_arrow_start) -- ([yshift=-.2ex,xshift=.3em]cf_arrow_end) ;
}

\begin{document}

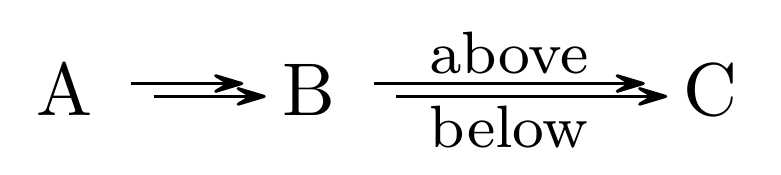

\ch{A >> B >>[above][below] C}

\end{document}
site moderator & package author
Sonntag
Posts: 13
Joined: Sun May 24, 2015 3:37 pm

Re: Arrow for multiple consecutive reactions

Post by Sonntag »

Thank you!
