Page Layout ⇒ Page prints larger than it is

[pawhan11]

Hello,

I have strange problem. I create table with fixed width.

Code: Select all

documentclass[10pt,a4paper]{article}
\usepackage{array}
\usepackage{geometry}

 \geometry{
 a4paper,
 total={210mm,297mm},
 left=20mm,
 right=15mm,
 top=20mm,
 bottom=20mm,
 }

\begin{document}

\begin{center}
\begin{table}
\begin{tabular}{ | m{28mm} | m{30mm}| m{25mm}| m{25mm}| m{20mm}| m{30mm} }
\hline
Nr katalogowy: & 2 & Nr seryjny: & 4 &Wynik: & Pass \\
\end{tabular}
\end{table}
\end{center}

\end{document}

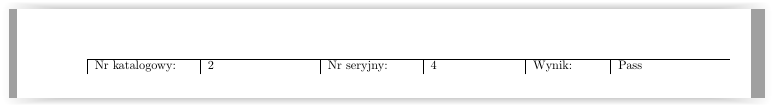

And result is something like that


Why doesn't it fit in my page?? Page width is 210mm - margins it is 175mm of free space. Total table width should be 158mm so it should fit into that space.
Another problem is when I generate PDF and print it ( size as oryginal ) table columns are larger than I typed.

Thanks for any suggestions

[Johannes_B]

You are missing out on the space between the columns called tabcolsep.

Code: Select all

\documentclass[10pt,a4paper]{article}
\usepackage{array}
\usepackage{showframe}
\usepackage{geometry}

\geometry{
	a4paper,
%	total={210mm,297mm},%You are giving this by a4paper
	left=20mm,
	right=15mm,
	top=20mm,
	bottom=20mm,
}

\begin{document}
Hello
\vspace{1cm}
%\begin{center}%No need for that
\begin{table}[!h]
		\setlength{\tabcolsep}{0pt}%<- This is added
%		between all columns
		\begin{tabular}{ | m{28mm} | m{30mm}| m{25mm}| m{25mm}| m{20mm}| m{30mm} }
			\hline
			Nr katalogowy: & 2 & Nr seryjny: & 4 &Wynik: & Pass \\
		\end{tabular}
	\end{table}
%\end{center}

\end{document}

[pawhan11]

Thanks! It solved my problem
