Graphics, Figures & Tables ⇒ Branching Arrows with Decision Option in Flowchart

[mayankmi]

Hey,

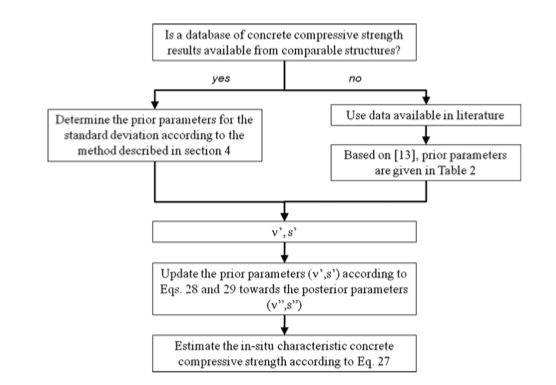

I just want to bifurcate arrows with yes no options as shown in figure attached. My sample code is given below.

Code: Select all

Code, edit and compile here:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
\documentclass[11pt]{article}
\usepackage[T1]{fontenc}
\usepackage{tikz}
\usetikzlibrary{arrows,trees}
\tikzstyle{intt}=[draw,text centered,minimum size=6em,text width=5.25cm,text height=0.34cm]
\tikzstyle{intl}=[draw,text centered,minimum size=2em,text width=2.75cm,text height=0.34cm]
\tikzstyle{int}=[draw,minimum size=2.5em,text centered,text width=3.5cm]
\tikzstyle{intg}=[draw,minimum size=3em,text centered,text width=6.cm]
\tikzstyle{sum}=[draw,shape=circle,inner sep=2pt,text centered, node distance=3.5cm]
\tikzstyle{summ}=[draw,shape=circle,inner sep=4pt,text centered, node distance=3.cm]
\begin{document}
  \begin{figure}[!htb]
    \centering
    \begin{tikzpicture}[
      node distance=1.25cm,
      auto,
      >=latex'
    ]
      \node [intg] (kp) {Is database of concrete clear cover available from construction drawings?};
      \node [int] (ki1) [below of=kp,yshift=-1cm,xshift=-2.25cm] {Use Jeffreys Prior, Eq xx};
      \node [int] (ki2) [below of=kp,yshift=-1cm,xshift=2.25cm] {Use Conjugate Prior, Eq yy};
      \node [intg] (ki3) [below of=kp,yshift=-2.75cm] {Find Posterior Parameters for population of concrete cover};
      \node [intg] (ki4) [below of=kp,yshift=-4.5cm] {Plot the posterior density function to help practitioner pick value of cc};
      \draw[->]  (kp) |- node[pos=0.25] {} (ki1);
      \draw[->]  (kp) |- node[pos=0.25] {} (ki2);
      \draw[->] (ki1) -- node[pos=0.25] {} (ki3);
      \draw[->] (ki2) -- node[pos=0.25] {} (ki3);
      \draw[->] (ki3) -- node[]         {} (ki4);
    \end{tikzpicture}
    \caption{Data Fusion system using Bayesian approach for updating Compressive strength $f_c$ in case of data from Literature and core compressive strength data for granite}
    \label{fig:datafusionindirectdirectfc}
  \end{figure}
\end{document}


הההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההה
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Run LaTeX here

[localghost]

You are probably searching for something like this. The example uses the libraries calc to calculate coordinates and positioning to position nodes individually. Please refer to the PGF/TikZ user guide for details. The output is attached.

Code: Select all

Code, edit and compile here:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
\documentclass[11pt]{article}
\usepackage[T1]{fontenc}
\usepackage{tikz}
\usetikzlibrary{arrows,calc,positioning}
\tikzstyle{intt}=[draw,text centered,minimum size=6em,text width=5.25cm,text height=0.34cm]
\tikzstyle{intl}=[draw,text centered,minimum size=2em,text width=2.75cm,text height=0.34cm]
\tikzstyle{int}=[draw,minimum size=2.5em,text centered,text width=3.5cm]
\tikzstyle{intg}=[draw,minimum size=3em,text centered,text width=6.cm]
\tikzstyle{sum}=[draw,shape=circle,inner sep=2pt,text centered,node distance=3.5cm]
\tikzstyle{summ}=[drawshape=circle,inner sep=4pt,text centered,node distance=3.cm]
\begin{document}
  \begin{figure}[!htb]
    \centering
    \begin{tikzpicture}[
      >=latex',
      auto
    ]
      \node [intg] (kp)  {Is database of concrete clear cover available from construction drawings?};
      \node [int]  (ki1) [node distance=1.5cm and -1cm,below left=of kp] {Use Jeffreys Prior, Eq xx};
      \node [int]  (ki2) [node distance=1.5cm and -1cm,below right=of kp] {Use Conjugate Prior, Eq yy};
      \node [intg] (ki3) [node distance=5cm,below of=kp] {Find Posterior Parameters for population of concrete cover};
      \node [intg] (ki4) [node distance=2cm,below of=ki3] {Plot the posterior density function to help practitioner pick value of cc};
      \draw[->] (kp) -- ($(kp.south)+(0,-0.75)$) -| (ki1) node[above,pos=0.25] {Yes} ;
      \draw[->] (kp) -- ($(kp.south)+(0,-0.75)$) -| (ki2) node[above,pos=0.25] {No};
      \draw[->] (ki1) |- (ki3);
      \draw[->] (ki2) |- (ki3);
      \draw[->] (ki3) -- (ki4);
    \end{tikzpicture}
    \caption{Data Fusion system using Bayesian approach for updating Compressive strength $f_c$ in case of data from Literature and core compressive strength data for granite}
    \label{fig:datafusionindirectdirectfc}
  \end{figure}
\end{document}


הההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההההה
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Run LaTeX here

Final adjustments are up to you.


Thorsten
