Graphics, Figures & Tables ⇒ Bars on Top of Symbols collide with Table Rules

[clarinetist]

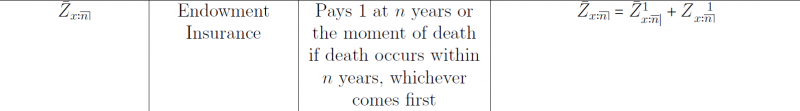

This problem is more of an aesthetics problem, more than anything. Here's how the output looks on my computer at the 100% view on Adobe Reader.


If I zoom this in to 200% on Adobe Reader, I get this.


So, it looks like the table rule by \hline is hiding the bars on top of the Z symbols. Is there any way I can move those symbols down a little bit in their cells?

Code: Select all

\documentclass[12pt]{book}
\usepackage{lifecon}
\usepackage{amsmath}
\usepackage{array}
\usepackage{pdflscape}

\begin{document}
  \begin{landscape}
    \begin{tabular}{
      |>{\centering\arraybackslash}p{3cm}
      |>{\centering\arraybackslash}p{3cm}
      |>{\centering\arraybackslash}p{4cm}
      |c|c|
    } \hline
      $\bar{Z}_{x:\lcroof{n}}$ & Endowment Insurance & Pays 1 at $n$ years or the moment of death if death occurs within $n$ years, whichever comes first & $\bar{Z}_{x:\lcroof{n}} = {\bar{Z}}^{1}_{x:\overline{n}|} + \lcend{Z}{x}{n}$ & $\bar{A}_{x:\lcroof{n}} = {\bar{A}}^{1}_{x:\overline{n}|} + {}_{n}E_{x}$ \\ \hline
    \end{tabular}
\end{landscape}
\end{document}

Thank you.

FYI: You may have to download the lifecon package.

[clarinetist]

Never mind - problem solved here.
