LyX ⇒ how to make word table bold

[besbesmany]

I want to make word table bold and put caption below word table, also i want both word table and caption to be most left justified with left border of table , like this

Table1
This is table1 caption

[Stefan Kottwitz]

You could load the caption package with the desired settings. For this, add to your document preamble:

Code: Select all

\usepackage[labelfont=bf, labelsep=newline, justification=raggedright,
  singlelinecheck=false]{caption}

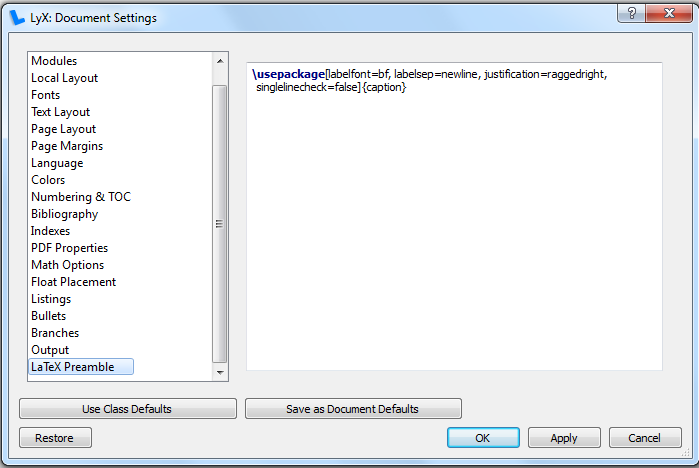

Open it via the LyX main menu, Document / Settings / LaTeX preamble:


Stefan

[besbesmany]

Thanks it works but i still have some problems

I want size of word Table1 be small as caption

also there is a big space like a new line between caption text and table top frame
is there any solution for that??

[besbesmany]

I tried this

Code: Select all

\usepackage[labelfont=bf,labelsep=newline,justification=raggedright,singlelinecheck=false,font=small]{caption}

but stil word Table1 are bigger thatn caption text

[Stefan Kottwitz]

Perhaps post a small working example, because the solution may depend for example on the class which your LyX document bases on. With a standard document, my solution works as expected. I know, that for example with KOMA classes it can be different, since they have a different caption handling.

Stefan

[besbesmany]

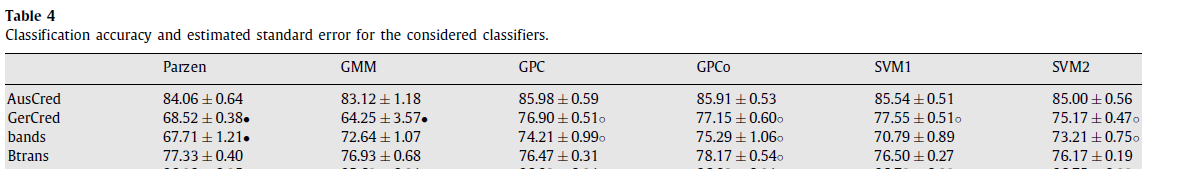

I want table to be like picture wanted.png to be like the other

also i want to ask if i can make table bigger like the other attached table, I see that table take the full width of the page while mine is small width
what i can do?

[besbesmany]

I use elsarticle class with 2 column document but i made span columns so table will span over 2column document
