Hi All,

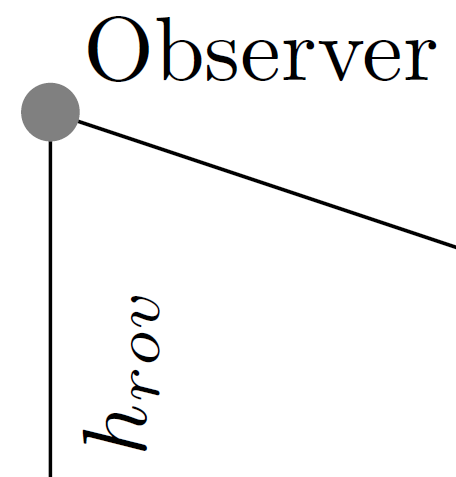

I just started working with TikZ and while results are very pleasing the actual plots looks a bit pixalated. Is there any easy way of changing output plots resolution ?

[Stefan Kottwitz]

You could raise the number of samples used for plotting and use smooth paths for connecting the plot points. Perhaps show your example plot code.

Stefan

[LKB]

Stefan,
The problem seems to be mostly visible with text, and as I mentioned the whole plot looks pixelated. I would pferer to to have 300dpi data instead of what I expect is 72dpi.
I was hoping there is some command allowing you to increase the dpi of the output. Only other way I see, which is troublesome, is to make a big plot and scale it down but text problematic as it does not scale down.

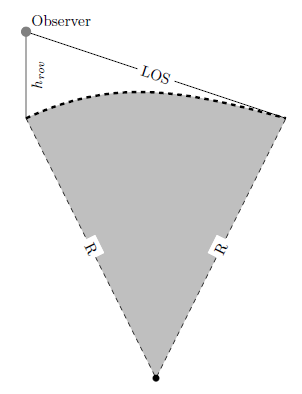

My code:

Code: Select all

\newcommand*{\TXTin}[1]{node[black, sloped, midway, inner sep=.1cm,fill=white]{#1}} \newcommand*{\TXTout}[1]{node[black, midway, below, sloped]{#1}}
\definecolor{LightGrey}{HTML}{BFBFBF}

\begin{tikzpicture}
%earth
\fill[LightGrey] (6,6) -- (3,0) \TXTin{R} -- (0,6) \TXTin{R} to [out=25,in=165] (6,6);
\draw [dashed,ultra thick] (0,6) to [out=25,in=165] (6,6);
\draw [dashed] (0,6) -- (3,0) \TXTin{R} -- (6,6) \TXTin{R}; \filldraw [black] (3,0) circle (2pt);

%observer
\draw (0,6) -- (0,8) \TXTout{$h_{rov}$} -- (6,6) \TXTin{LOS};
\filldraw [gray] (0,8) circle (3pt);
\node [above right] at (0,8) {Observer};

\end{tikzpicture}

edit: remove extra code lines, add extra explanation

[Stefan Kottwitz]

The problem seems to be mostly visible with text

So I guess it's a font issue. Perhaps you are using a bitmap font, not a type 1 vector font.

Code: Select all

\begin{tikzpicture} [resolution: 300 300]

resolution is not a valid option.

When I remove this, the picture is ok and can be scaled without getting pixelated.



Stefan

[LKB]

Thank you,
This might be a font issue indeed. On my output it does look like bitmap has been rescaled. Could you advice how can I change the font? I use Lyx as a front-end here but I suspect that font problem got more to do with pdflatex.

I just corrected the code - you are much faster then me ...

[Stefan Kottwitz]

The default (Computer Modern) font can look pixelated with T1 font encoding. Instead of the default font I would use Latin Modern, which is very similar, provides high quality and also T1 support.

Simply add

Code: Select all

\usepackage{lmodern}

to your document preamble.

Stefan

[LKB]

Magic. Thank you.
