Graphics, Figures & Tables ⇒ colortbl | Problem with coloring Table

[Kirlian]

Hi there.

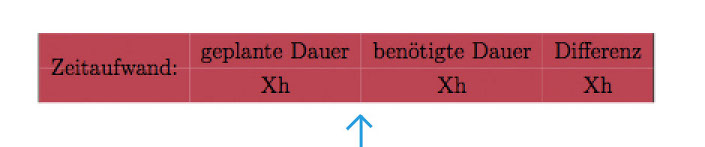

i want to color the background of a table with the 'colortbl'-package. This is working in some way but i getting ugly white lines between the cells. This is very disturbing when you use multirows/columns.

My Code:

Code: Select all

\begin{table}[ht]
\begin{tabular*}{\textwidth}{|l c c c|}
\rowcolor{time_tbl_bg}
 & geplante Dauer & benötigte Dauer & Differenz\\
\rowcolor{time_tbl_bg}
\multirow{-2}{*}{Zeitaufwand:} & Xh & Xh & Xh\\
\end{tabular*}
\end{table}

Does somebody know how to get rid of this lines or a better way to color a table backgound?

Cheers Michael

[localghost]

It would be very kind if you mention when doing a crossposting [1]*. This is only fair because it prevents others from double efforts and waste of time.


* According to the rules you are obliged to do so.

[1] Tabelle einfärben mit 'colortbl' - mrunix.de


Thorsten

[Kirlian]

Sorry, just wanted reach a greater audience. didnt know this 2 forums are connected.

[Stefan Kottwitz]

Hi Kirlian,

the problem is not that users read in several forums. If would be worse if nobody would do it, resulting in users wasting time solving your problem in one forum where in the other forum already might be a solution.

Would you call 2 or 3 pizza services for having a greater chance of getting a pizza? Surely not, because their work is not free...

Many think, that it would be a problem if users visit several forums - just because they were caught doing hidden crosspostings! And they tell you. We visit several forums to be able to help more users.

Just put a link in each forum to the other posting and everything is better, also regarding sharing solutions.

Stefan

[Stefan Kottwitz]

Hi Kirlian,

a workaround can be using \\[-1pt] and @{\hspace{...}} or similar, such as:

Code: Select all

\begin{table}[ht]
\begin{tabular*}{\textwidth}{|l@{\quad}c@{\quad}c@{\quad}c|}
\rowcolor{time_tbl_bg}
& geplante Dauer & benötigte Dauer & Differenz\\[-1pt]
\rowcolor{time_tbl_bg}
\multirow{-2}{*}{Zeitaufwand:} & Xh & Xh & Xh\\[-1pt]
\end{tabular*}
\end{table}

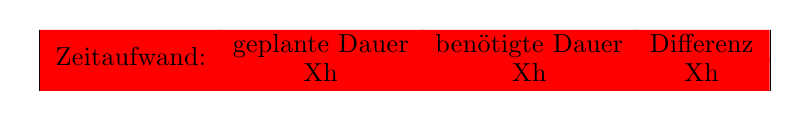

red colored rows


If you think it's useful, please let also the other forum know.

Stefan
