If you're making one or two manuals, use the article class. If you're going to be making lots and lots of manuals with the exact same style, you might consider defining your own class.
If this is your first time really using LaTeX without easy templates, and you want everything to look perfect, get ready to spend a lot of time! (But at least you _will_ be able to make it perfect, which is often impossible using other stuff...) Your request is kind of general, like "hey everyone, teach me LaTeX!"... So here's a very rough start, and maybe you can ask more specific questions about tables, headers, margins, etc. in other threads
Code: Select all
\documentclass{article}
\usepackage{mathpazo}
\usepackage[top=1.5cm, bottom=5cm, left=3cm, right=3cm]{geometry}
\usepackage{multirow}
\usepackage{lipsum}
\usepackage{lastpage}
\usepackage{fancyhdr}
\pagestyle{fancy}
\renewcommand{\headrulewidth}{0pt}
\renewcommand{\footrulewidth}{0pt}
\setlength{\headheight}{60pt}

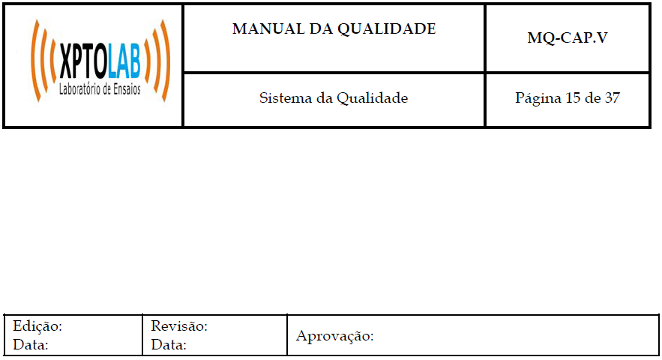

\fancyhead[C]{
\begin{tabular}{|c|c|c|}
\hline
\multirow{2}{*}{PICTURE} & \textbf{MANUAL DA QUALIDADE} & \textbf{MQ-CAP.V} \\ \cline{2-3}
& Sistema da Qualidade & P\'agina \thepage\ de \pageref{LastPage} \\ \hline
\end{tabular}
}
\fancyfoot[C]{
\begin{tabular}{|p{3cm}|p{3cm}|p{7cm}|}
\hline
Edi\c{c}\~ao:\newline Data & Revis\~ao:\newline Data: & Aprova\c{c}\~ao: \\ \hline
\end{tabular}
}
\begin{document}
\lipsum[1-20]
\end{document}
Note: the lipsum package is just for the dummy text.
