Hi all,

i am starting to use LyX 1.6.4 de to write process documentation.

I have to build the process-charts in microsoft visio. To use it in LyX i print the chart with Metafile to EPS Converter into
example.eps http://berlau.de/example.zip

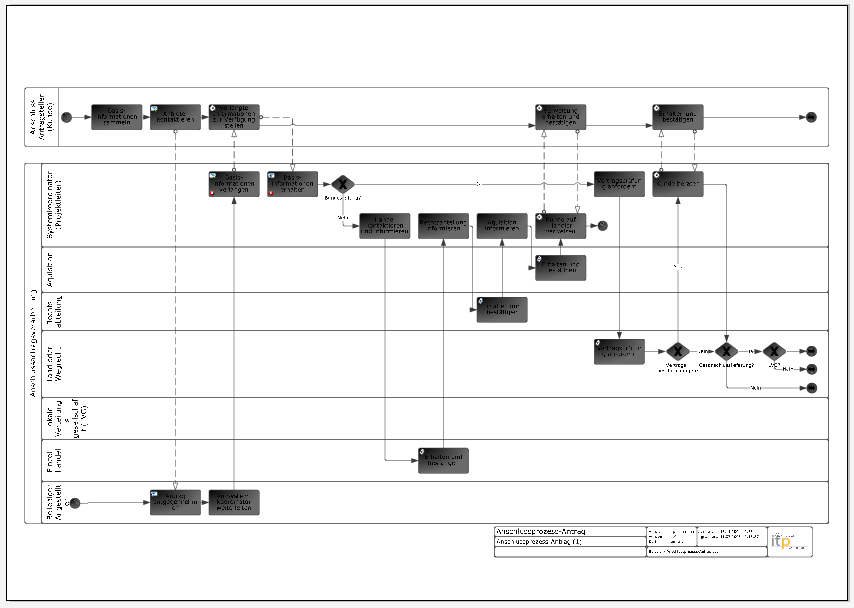

Open the EPS in Adobe Illustrator shows the EPS as example.png

The Diagramm in Adobe Illustrator

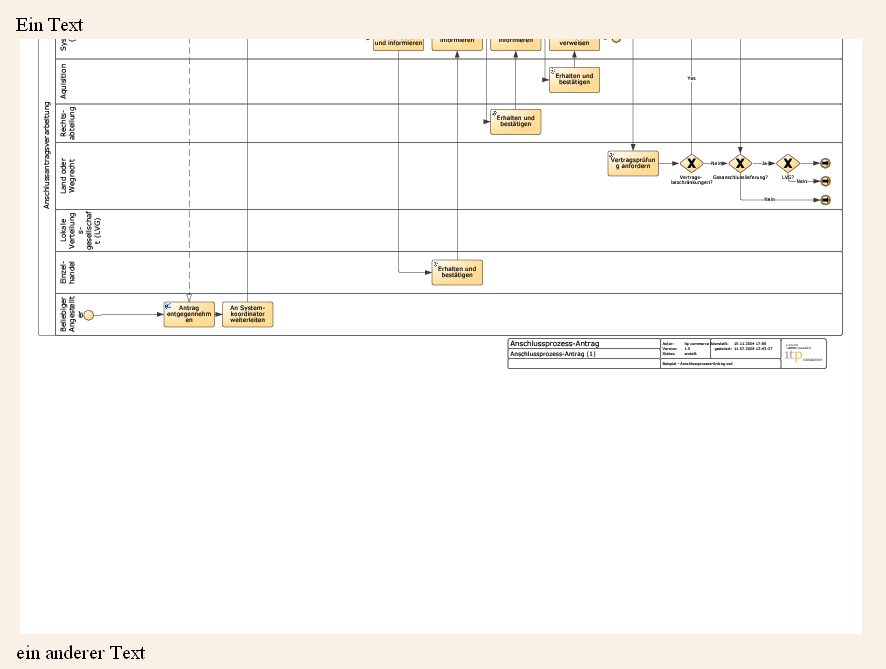

But "insert/image/example.eps" the result is shown in lxy-result.png

The Diagramm shown in LyX


You can see that the white place for the diagramm has the right size but the diagramm is starting in the middle of it and cut near the top half of the diagramm.

Whats the problem?
Any Hints?

kind regards
ralf

[localghost]

The bounding box of the EPS file is not correct. Use the PNG file and choose PDF output in LyX.


Best regards and welcome to the board
Thorsten
